Names and Functions

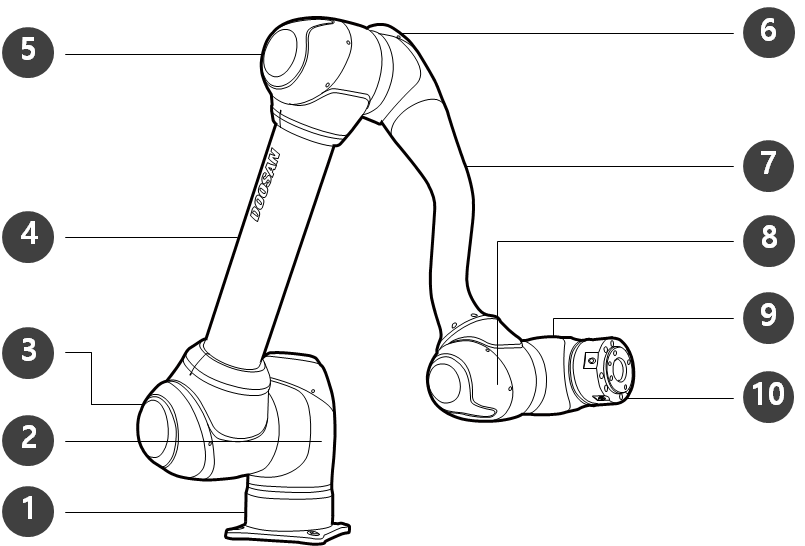

Manipulator

No.	Item	Description

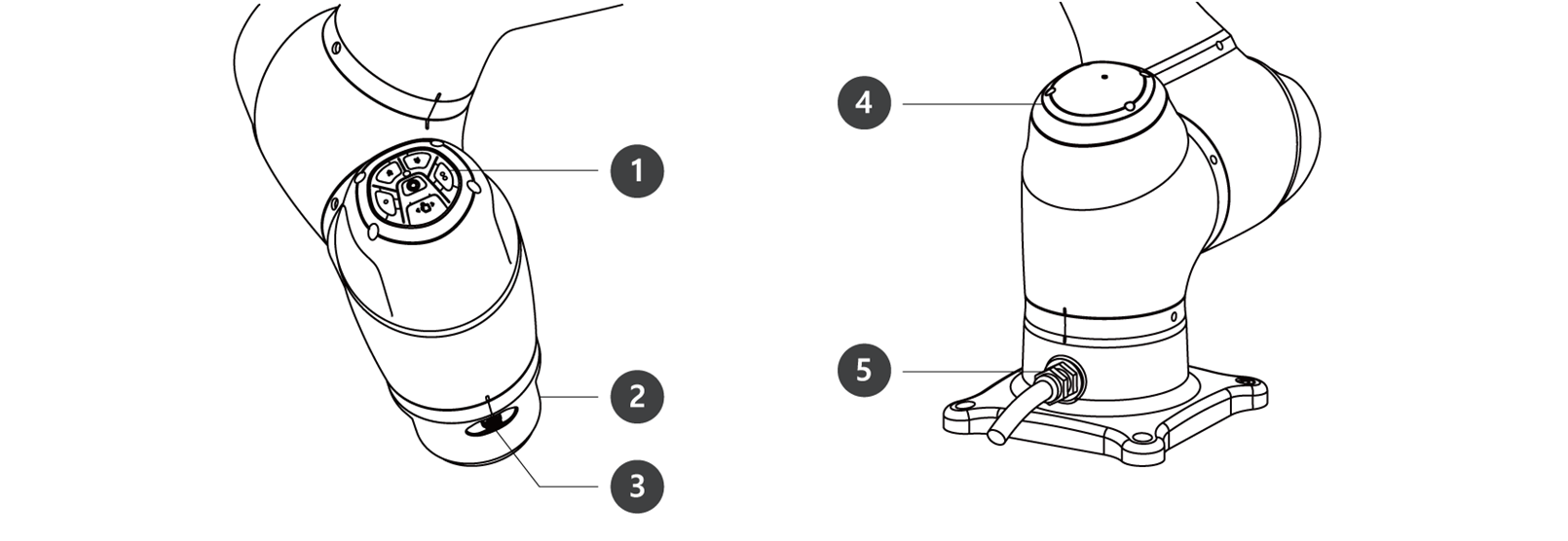

1	Cockpit	Controller used for direct teaching.
2	Tool flange	Area to install tools.
3	Flange I/O	I/O port for tool control. (Digital input 2ch, output 2ch)
4	LED (1-axis)	Displays the robot state with different colors. For more information about robot state, refer to the “ ”
5	Connector	Used for supplying power to and communication of the robot.

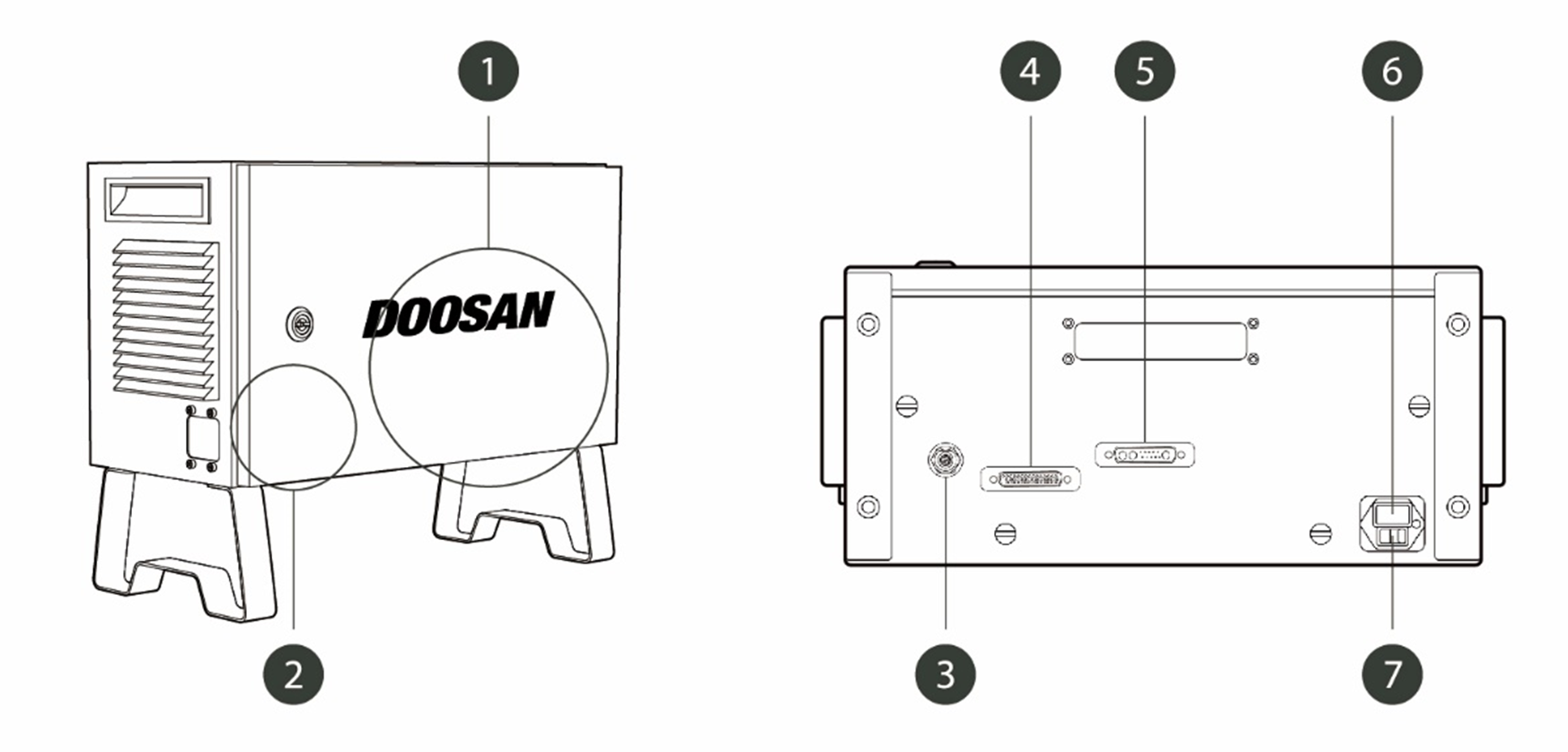

No.	Item	Description
1	I/O connection terminal (internal)	Used to connect the controller or peripherals.
2	Emergency stop button setting switch	To use the Teach Pendant, Smart Pendant, or Emergency Stop buttons, the switch must be set to match the actual configuration. Warning If the setting(Section Emergency Stop Button Setting Switch) of the emergency stop button setting switch is different from the actual configuration, the emergency stop button may fail and cause injury to the user in an emergency situation, so check the setting condition and operation of the emergency stop button.
3	Emergency stop button and smart pendant connection terminal	Connects the emergency stop button or smart pendant cable to the controller.
4	Teach pendant cable connection terminal	Used to connect the teach pendant cable to the control box.
5	Manipulator cable connection terminal	Used to connect the manipulator cable to the controller.
6	Power connection terminal	Used to connect the controller power supply.
7	Power switch	Used to turn ON/OFF the main power of the controller. For detailed product features, please refer System Power On/Off

No.	Item	Description
1	Emergency stop button	In case of an emergency, press the button to stop robot operation.

No.

Item

Description

Emergency stop button

In case of an emergency, press the button to stop robot operation.

The smart pendant is not a standard item but an optional item, so it must be purchased separately

For detailed product features, please refer Appendix. Smart Pendant (A Series).

No.	Item	Description
1	Robot LED	Used to indicate the robot’s state by displaying the same color as the robot status LED to the user.
2	Device LED	Used to indicate whether the system entered smart pendant mode.
3	Function LED	Pressing four input signal buttons (F1-F4) lights the LED, indicating the press status.
4	Buttons	There are a total of 11 buttons including four input signal buttons (F1-F4) for each function, home, servo, auto, play, stop, resume and pause.
5	Emergency Stop Button	In case of an emergency, press the button to stop robot operation.
6	Power Button	Used to turn ON/OFF the main power of the smart pendant.
7	Strap Anchor	Used to add a strap to the device.
8	Holder bracket	Install the holder bracket on a wall to store the smart pendant.

Note

For using SW V2.8 or higher, please attach the Reset label to the Resume button on the smart pendant.
If a version lower than SW V2.8 is used, the reset label does not need to be attached. In that version, The resume button in Smart Pendant works as a resume function, not a reset function.
The label may come off during use, so please be careful.

Scroll conditional content

1m/hseries

Scroll conditional content

The teach pendant is not a standard item but an optional item, so it must be purchased separately

2aseries

Scroll conditional content

3eseries

Scroll conditional content

hidecontents

Scroll conditional content

tet

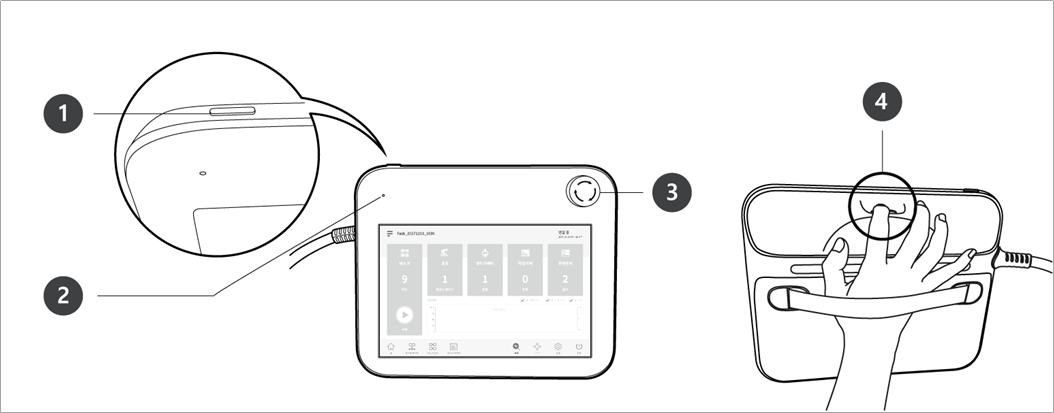

No.	Item	Description
1	Power button	Used to turn ON/OFF the main power of the teach pendant. For detailed product features, please refer System Power On/Off
2	Power LED	Turns ON when power is supplied.
3	Emergency stop button	Press the button to stop robot operation in case of an emergency.
4	Hand guiding button	Press and hold the button to move the robot freely into a desired pose.

Note

If you need to protect and hold the Teach Pendant during work, you can use it more safely and easily with a soft cover supplied by Doosan Robotics.
