External Internet, TCP/IP equipment and Modbus equipment can be connected to the network router inside the controller.
Connect cables to dedicated ports according to the network application.
-
WAN: Connecting external Internet
-
LAN: Connecting peripherals using TCP/IP or Modbus protocol

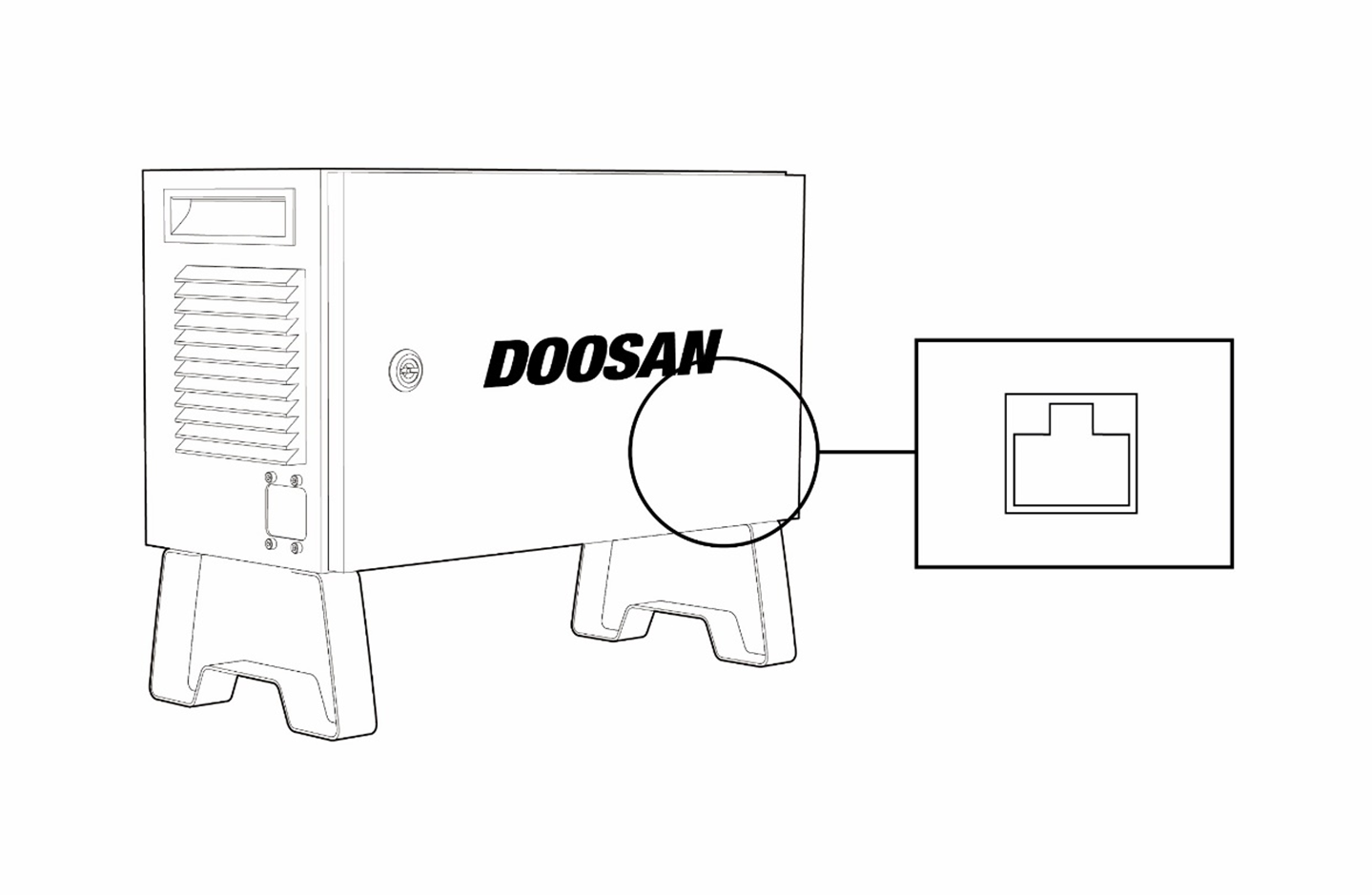

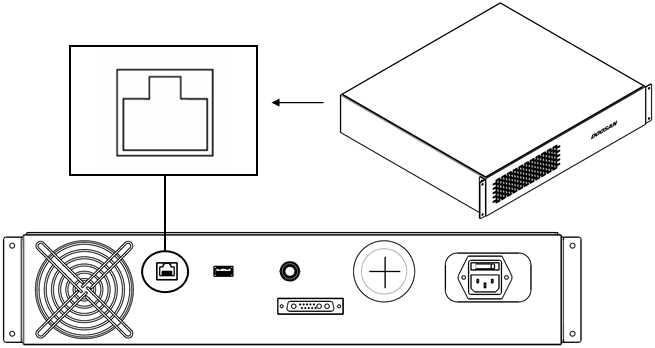

Connecting the cable to the network connection terminal will connect the network (refer to the figure below).
The LAN4 port is used to connect internal controllers, so do not connect other equipment.
