Connect cable to the controller

Mandatory   Easy   1 min

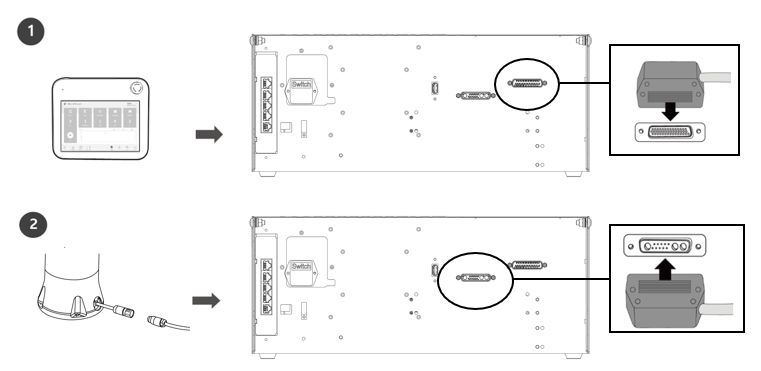

Connect the teach pendant and robot cable to the controller.

1. Push the teach pendant cable into the corresponding controller connector until a click is heard. This will prevent the cable from becoming loose.

2. Push the robot cable’s opposite end into the corresponding controller connector until a click is heard to prevent the cable from becoming loose.
