P3020 Stop Category 1

Stop Distance and Stop Time of Joint 1 (Base)

Stop Distance at Max. Load (rad)

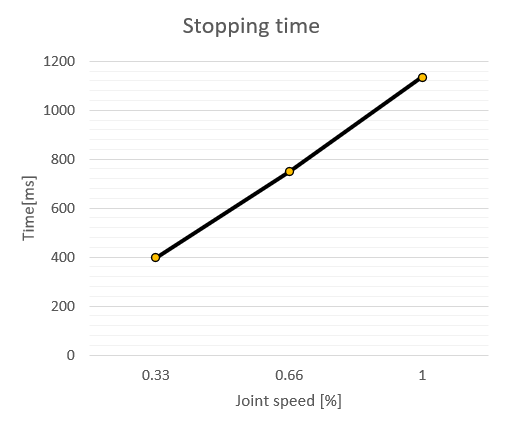

Stop Time at Max. Load (ms)




Stop Distance and Stop Time of Joint 2 (Shoulder)

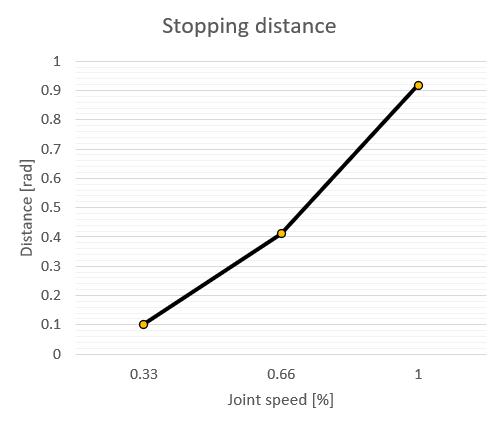

Stop Distance at Max. Load (rad)

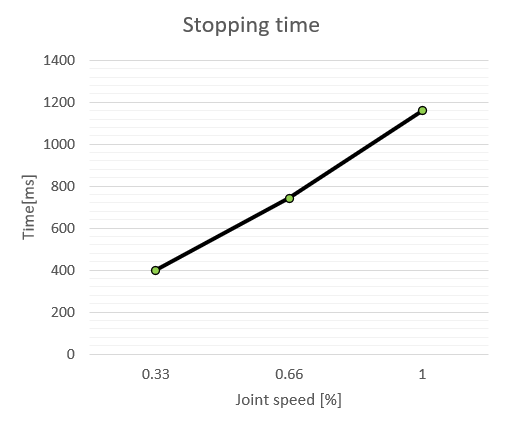

Stop Time at Max. Load (ms)




Stop Distance and Stop Time of Joint 3 (Elbow)

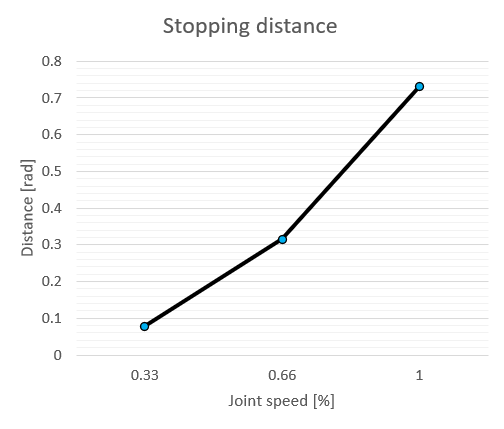

Stop Distance at Max. Stretch Level (rad)

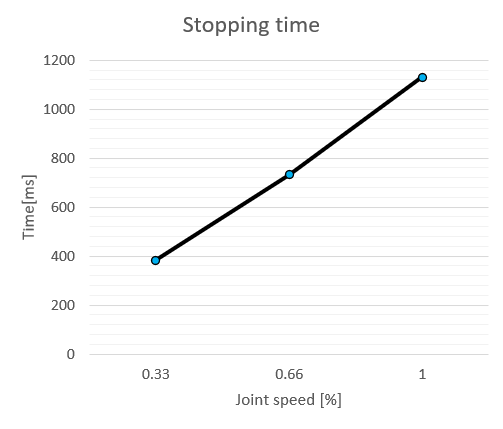

Stop Time at Max. Stretch Level (ms)





For P3020, Stop Distance and Stop Time are not affected by payload and extension.
