Mandatory Easy 5 min
Use four M6 bolts to secure the tool on the tool flange.
-
It is recommended to use tightening torque of 9 Nm to tighten the bolts.
-
Use a Φ6 place marker pin to accurately install the robot in a fixed location.
Note
-
For more information about the tool flange, refer to Connecting the Robot and Tool.
-
Methods of securing the tool may vary according to the tool. For more information about tool installation, refer to the manual provided by the tool manufacturer.
|

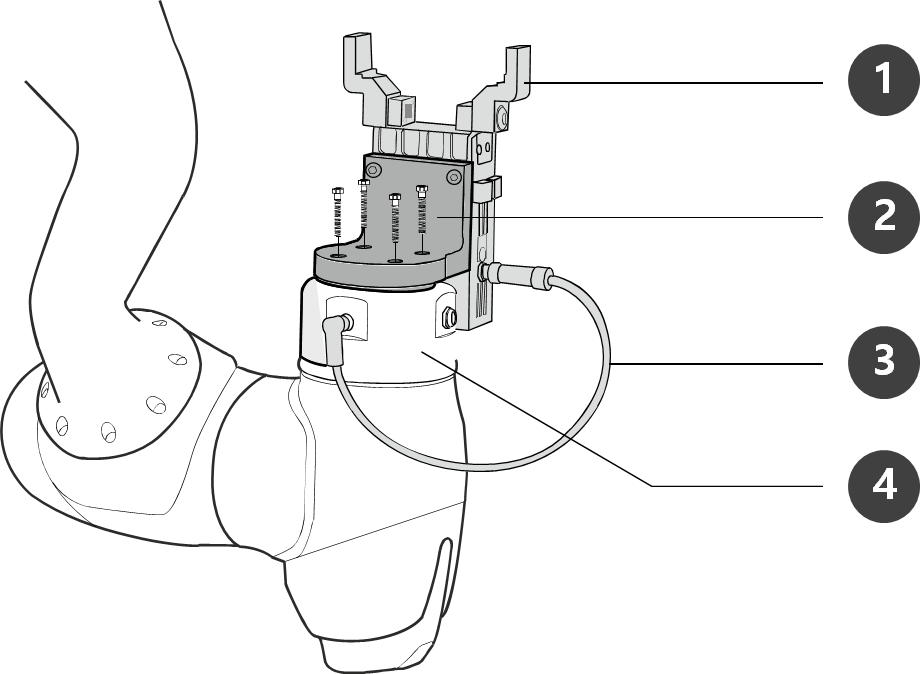

No. |
Item |
|---|---|
|
1 |
Tool |
|
2 |
Bracket |
|
3 |
Cable |
|
4 |
Tool Flange |
