Network Connection

External Internet, TCP/IP equipment and Modbus equipment can be connected to the network router inside the controller.

Connect cables to dedicated ports according to the network application.

  • WAN: Connecting external Internet

  • LAN: Connecting peripherals using TCP/IP or Modbus protocol

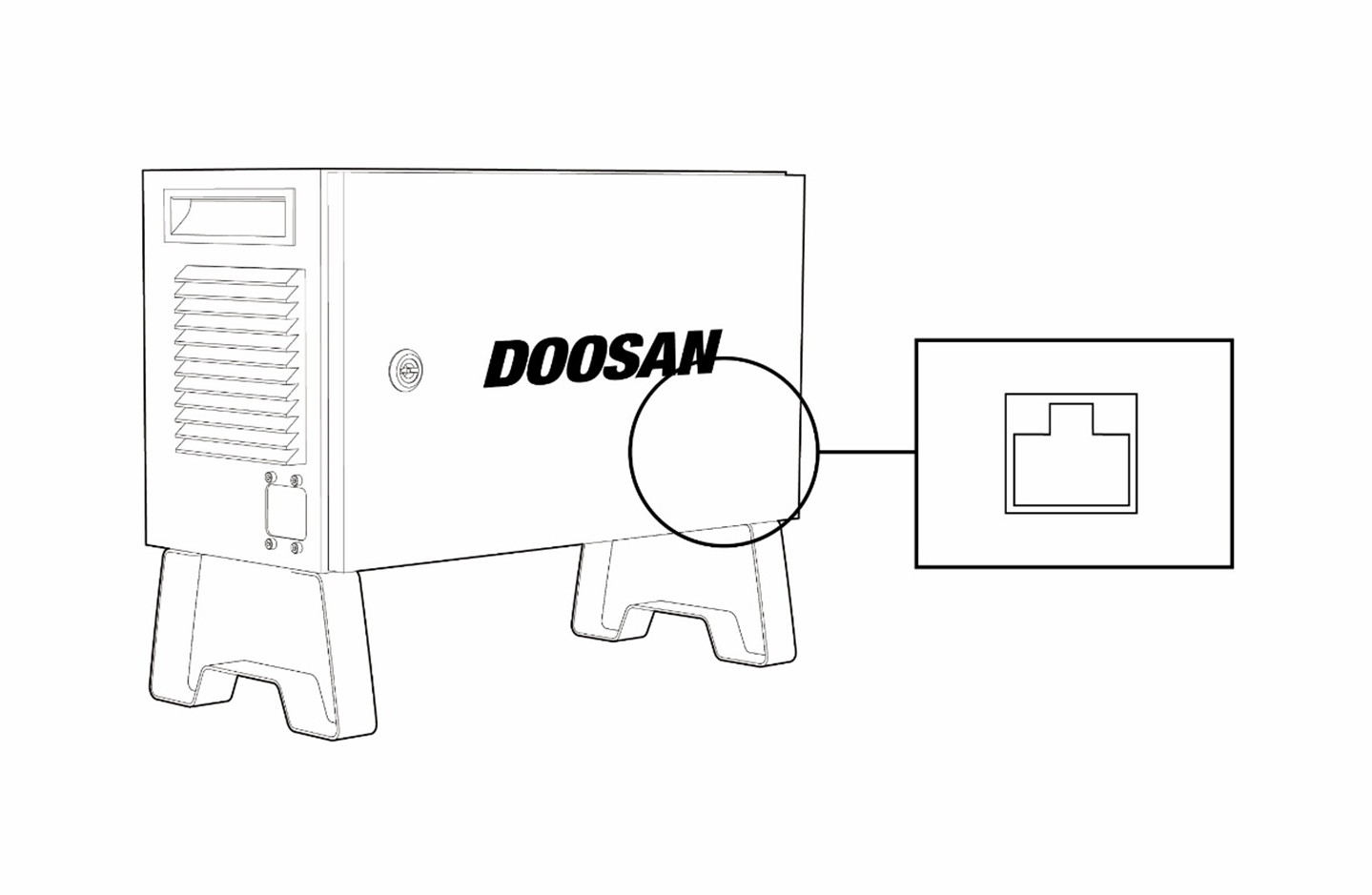

Connecting the cable to the network connection terminal will connect the network (refer to the figure below).
