Minimum/Recommended Requirement
The minimum installation requirements for the DART Platform are as follows:
-
OS: Windows 7 Enterprise Service pack1 (64 bit) or higher
-
CPU: 2.20 GHz or higher
-
GPU: GMA 4500 and GMA HD (Intel) or equivalent specification
-
Memory: 4 GB
-
Java SDK: jdk1.8.0_152 (64 bit)
-
Screen resolution: 1280 x 800
The recommended installation requirements for the DART Platform are as follows:
-
OS: Windows 10 Enterprise (64 bit)
-
CPU: 2.80 GHz or higher
-
GPU: GMA 4500 higher and GMA HD (Intel) higher
-
Memory: 16 GB
-
Java SDK: jdk1.8.0_152 (64 bit)
-
Screen resolution: 1280 x 800
DART Platform Resolution support
DART Platform can perform resolution-specific scaling to accommodate a variety of resolutions.(Resolution changes are only performed when the program is running and do not occur in real time.)
The supported resolutions are as follows:
-
800 x 600
-
1024 x 768
-
1152 x 864
-
1176 x 664
-
1280 x 720
-
1280 x 768
-
1280 x 800
-
1280 x 960
-
1280 x 1024
-
1360 x 768
-
1366 x 768
-
1440 x 900
-
1600 x 900
-
1680 x 1050
-
1768 x 992
-
1920 x 1080

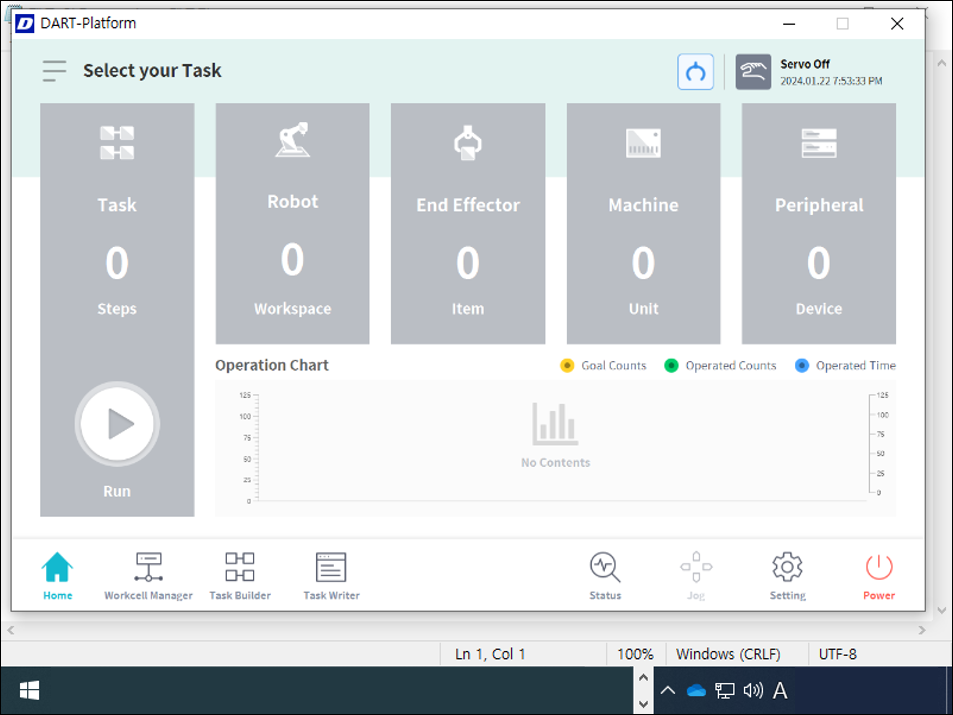

Example of displaying the DART Platform at 800 x 600 resolution
