M0617 Stop Category 1

Stop Distance and Stop Time of Joint 1 (Base)

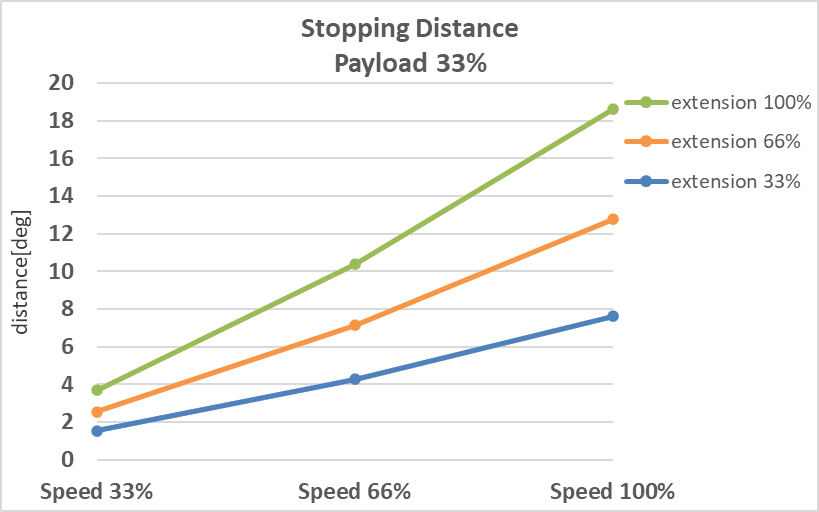

Stop Distance at 33% of Max. Load (deg)

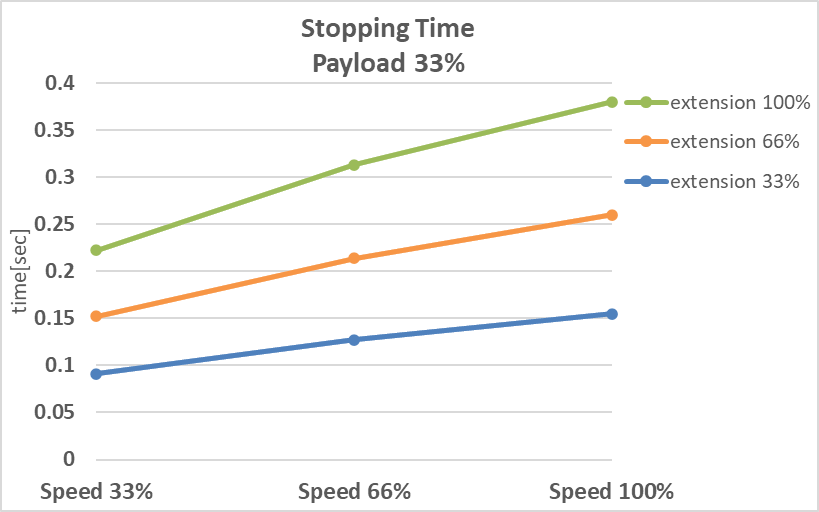

Stop Time at 33% of Max. Load (s)

Stop Distance at 66% of Max. Load (deg)

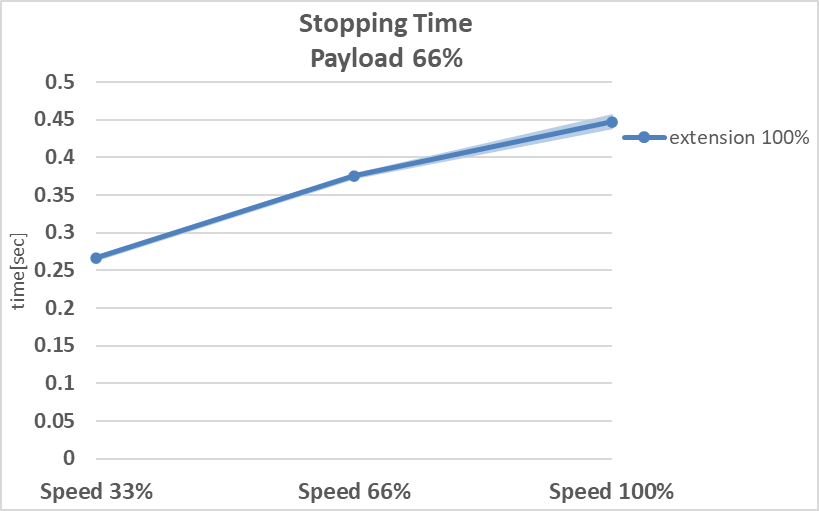

Stop Time at 66% of Max. Load (s)

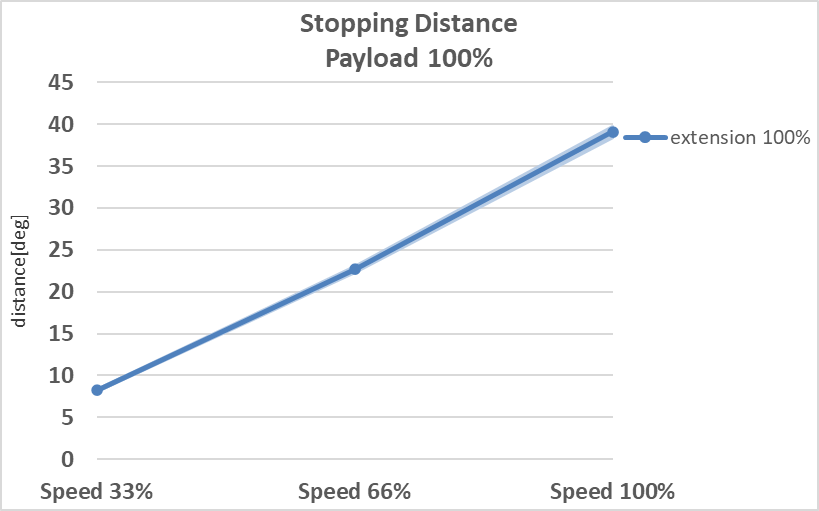

Stop Distance at Max. Load (deg)

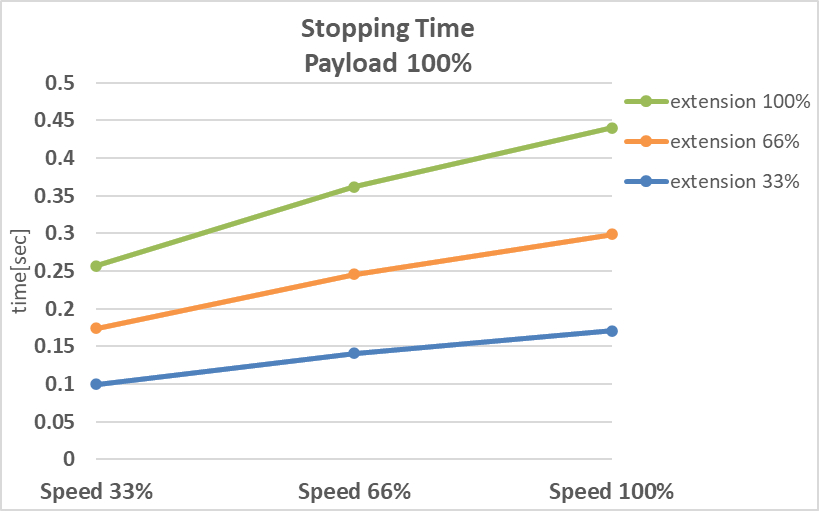

Stop Time at Max. Load (s)


Stop Distance and Stop Time of Joint 2 (Shoulder)

Stop Distance at 33% of Max. Load (deg)

Stop Time at 33% of Max. Load (s)

Stop Distance at 66% of Max. Load (deg)

Stop Time at 66% of Max. Load (s)

Stop Distance at Max. Load (deg)

Stop Time at Max. Load (s)


Stop Distance and Stop Time of Joint 3 (Elbow)

Stop Distance at 33% of Max. Load (deg)

Stop Time at 33% of Max. Load (s)

Stop Distance at 66% of Max. Load (deg)

Stop Time at 66% of Max. Load (s)

Stop Distance at Max. Load (deg)

Stop Time at Max. Load (s)
