Connect the robot cable to the controller
-

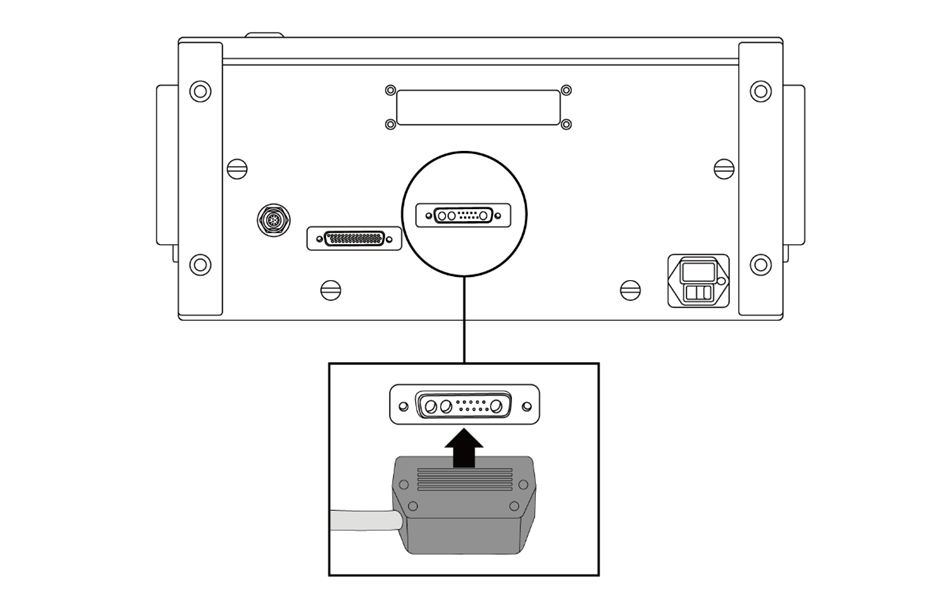

Push the manipulator cable connected to the robot into the corresponding controller connector until a click is heard to prevent the cable from becoming loose.
Caution
-
Do not disconnect the manipulator cable while the robot is turned on. This can cause damage to the robot.
-
Do not modify or extend the manipulator cable.
-
When installing the controller on the floor, secure at least 50 mm of space on each side of the controller to enable ventilation.
-
Make sure that connectors are properly connected before turning on the controller.
Note
-
When configuring the system, it is recommended that a noise reducer be installed to prevent noise effects and malfunction of the system.
-

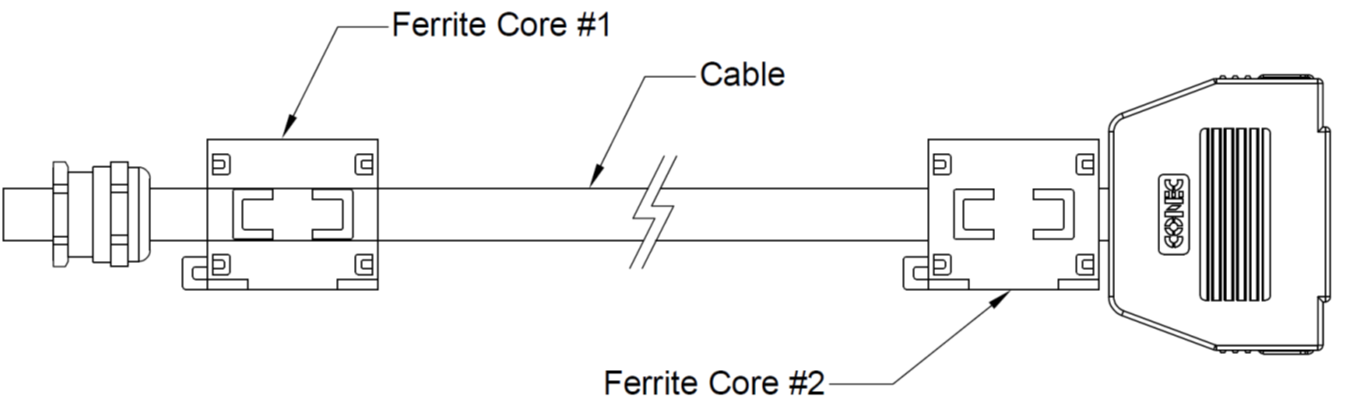

If the controller is influenced by noise generated by electromagnetic waves, it is recommended to install a ferrite core on each side of manipulator cable to ensure normal operation. The installation location is as follows:
