Mandatory Easy 1 min
Press the shutdown button on the teach pendant or press and hold the power button on the upper left of the teach pendant for 2 seconds to turn off the system.
-
The shutdown popup is displayed on the screen.
-
Press the OK button on the shutdown popup to properly shutdown the system.
Caution
-
Press and hold the power button for more than 4 seconds to force system shutdown.
-
Forced shutdown may cause robot and controller failure.
Only when E-STOP Box is used

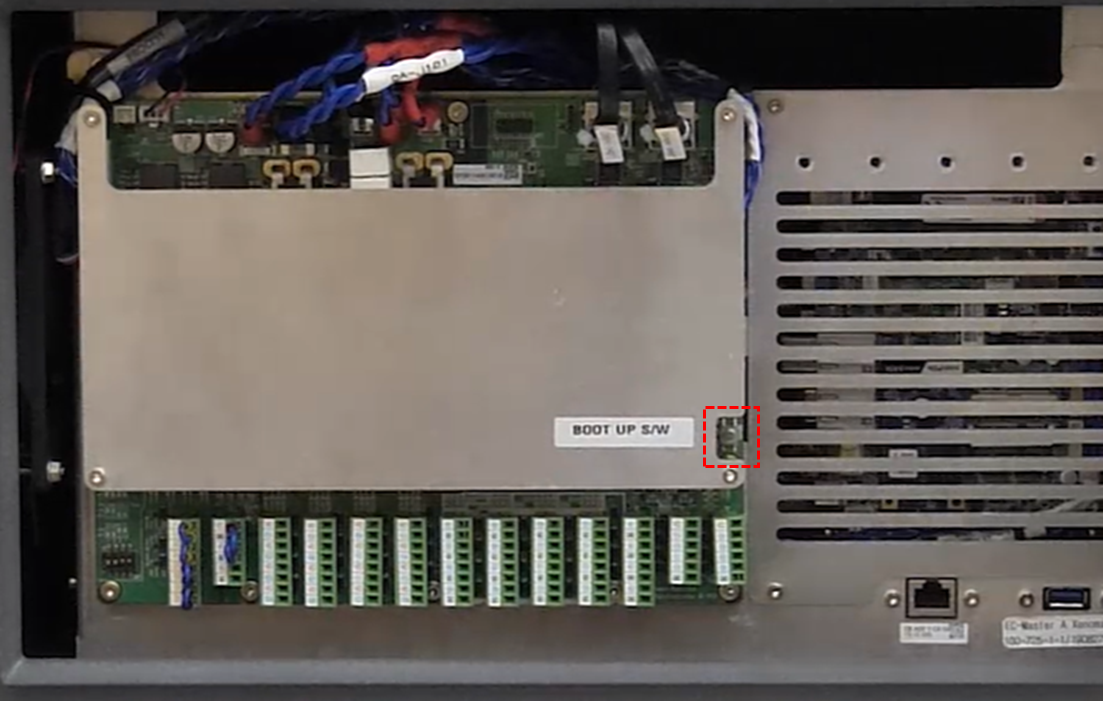

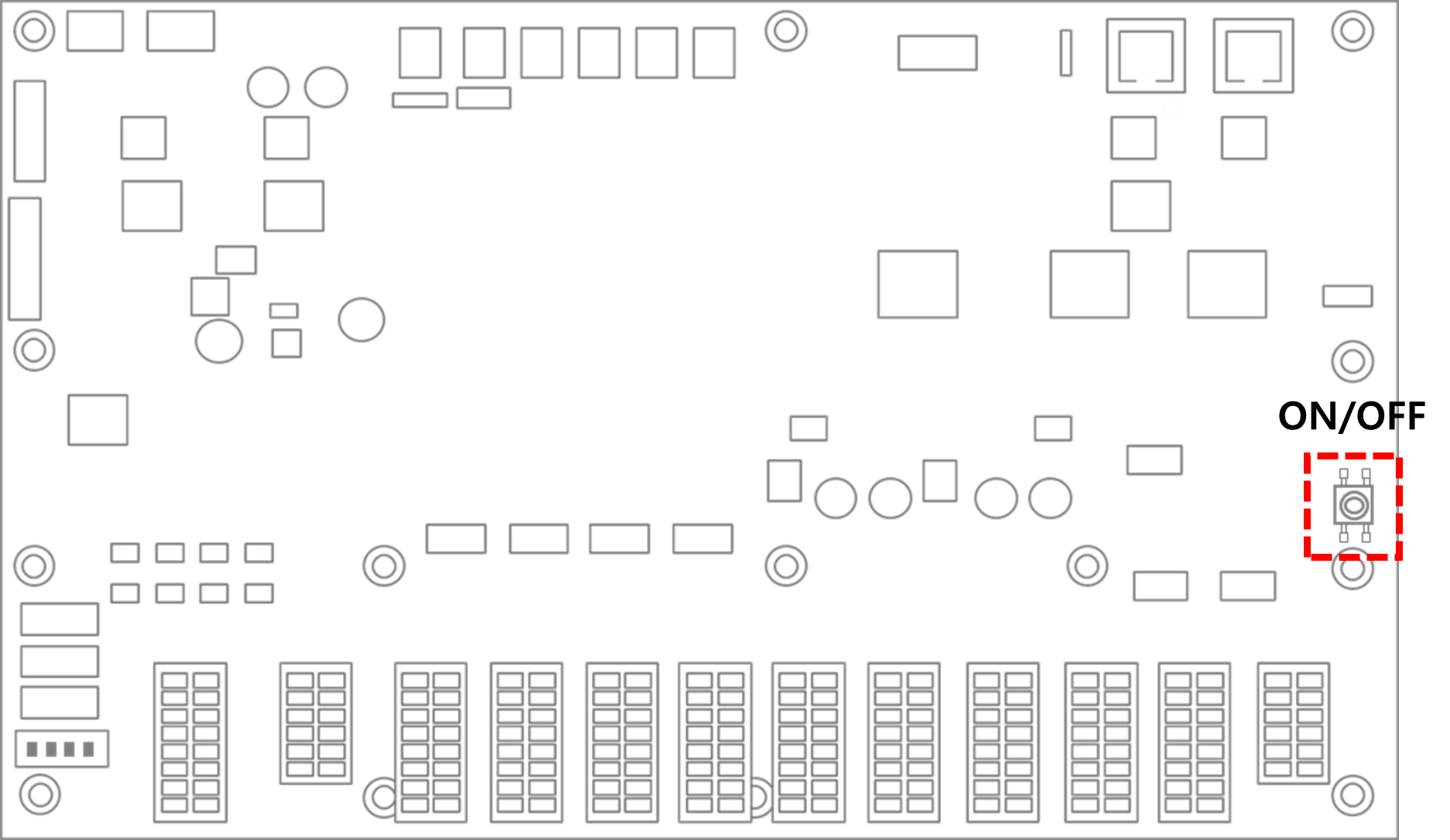

Open the controller door, and press and hold the power button located at the bottom right of the Safety board.
-
To turn off the power, press and hold the button.

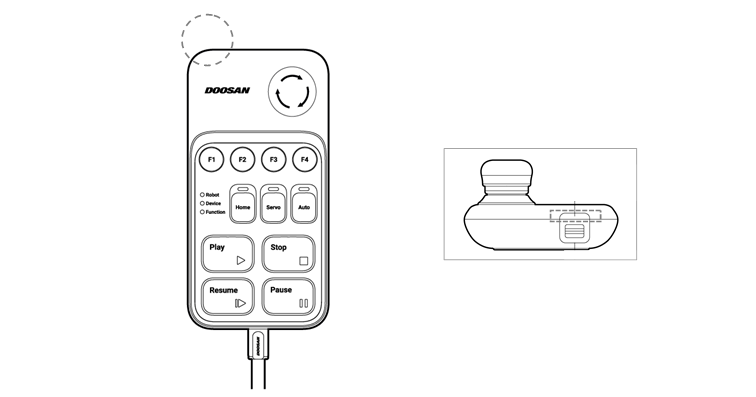

When smart pendant (optional) is used
Press and hold the power button on the upper left of the smart pendant.
-
To turn off the power, press and hold the button.
