The program provides to load shapes from CAD files.
Supporting CAD Format
|
3D CAD File |
IGES (.igs, .iges), STEP (.stp, .step) |
|
3D Shape File |
STL (.stl) |
|
2D CAD File |
DXF (.dxf) |
IGES, STEP files are standard CAD file formats used widely. If the format of a CAD file is not one of them, translate the cad format by using CAD software.
-

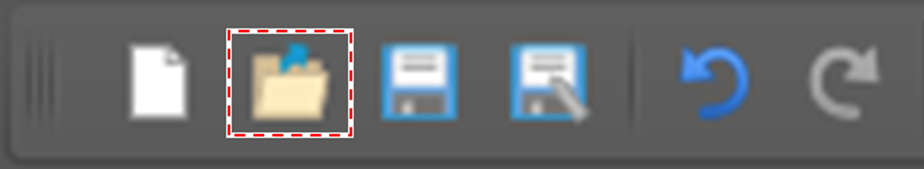

Click [Open document] button in the menu bar.
-

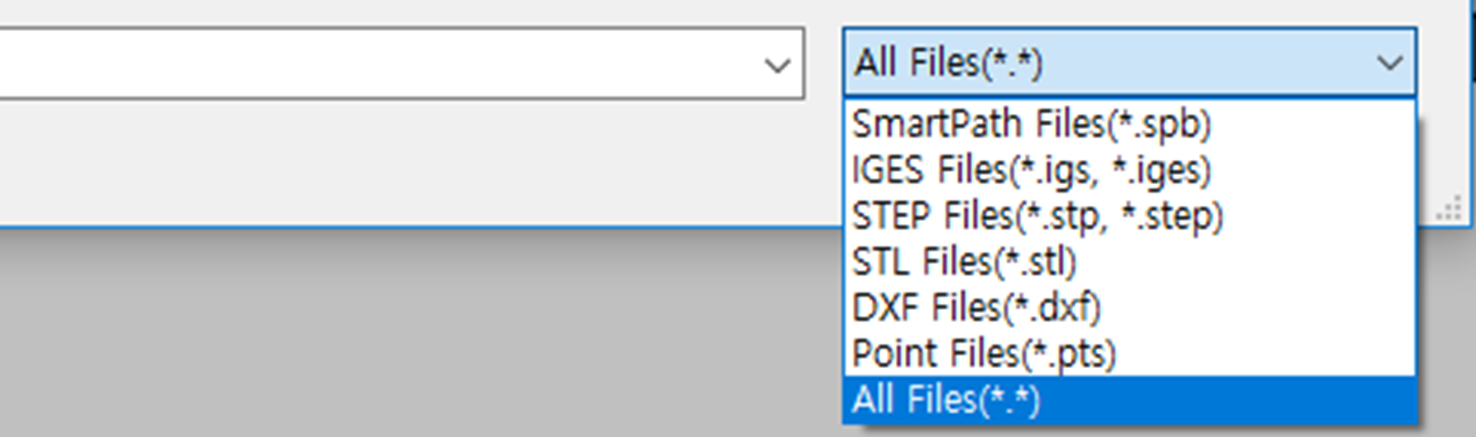

Select CAD files in the file open dialog.
2 or more files can be loaded at once.
.spb file is a path generation document file. So the file cannot be loaded with other file format files.
