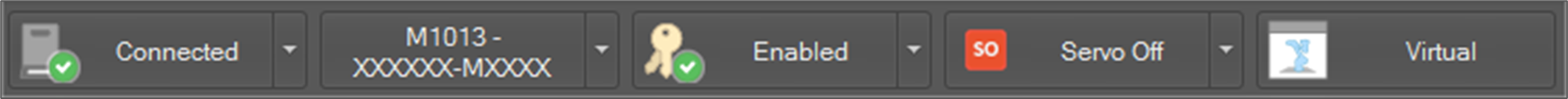

The Monitoring Bar window mainly shows the states needed for the user to control the robot.
-
Connection State: It shows the connection state to the controller.
-
Robot Model: It shows the currently connected robot’s model type and serial number.
-
Control Authority: It shows whether control is enabled.
-
Control State: It shows the current control state.
-
System Mode: It shows the current system mode. The system mode can be either Real or Virtual. “Virtual” means that the robot motion is simulated without actually moving
