Turn system power off

Mandatory   Easy   1 min

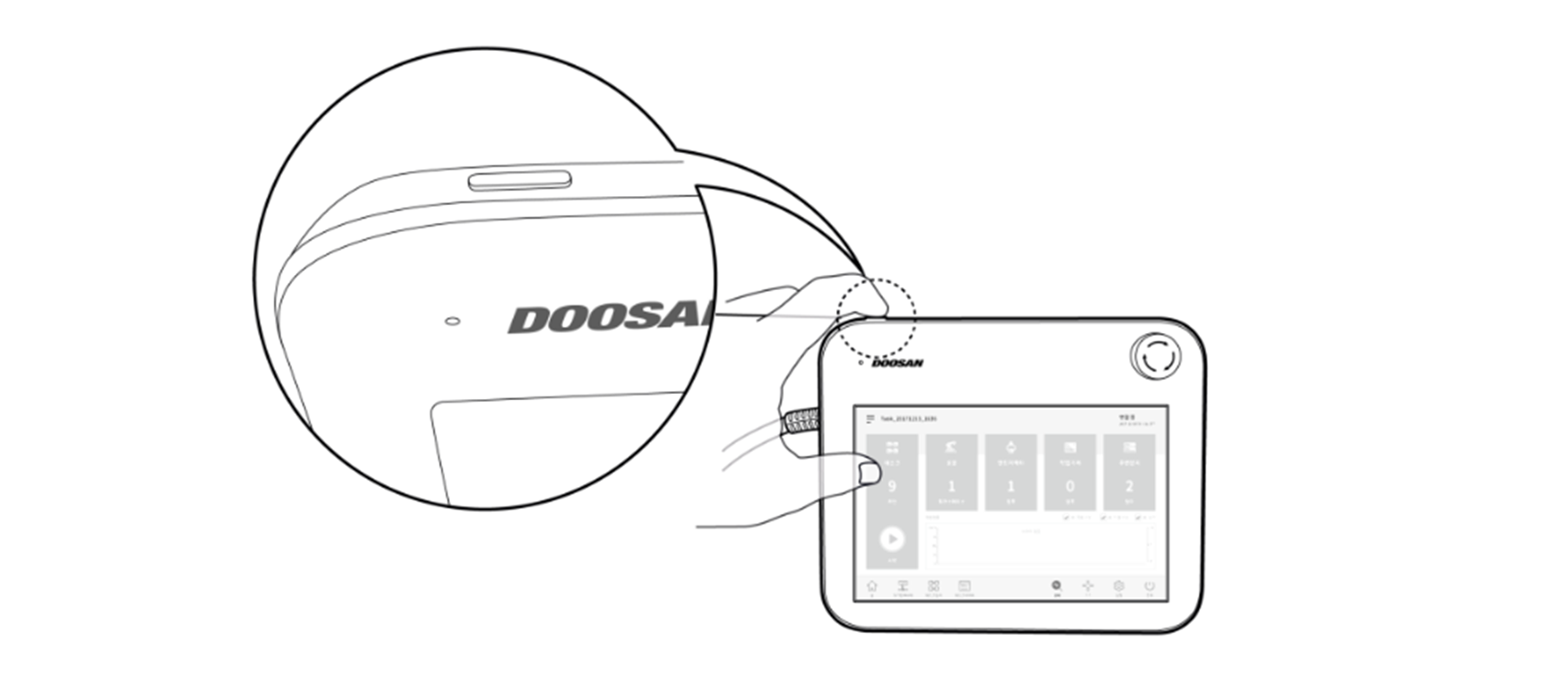

Press the shutdown button on the teach pendant or press and hold the power button on the upper left of the teach pendant for 2 seconds to turn off the system.

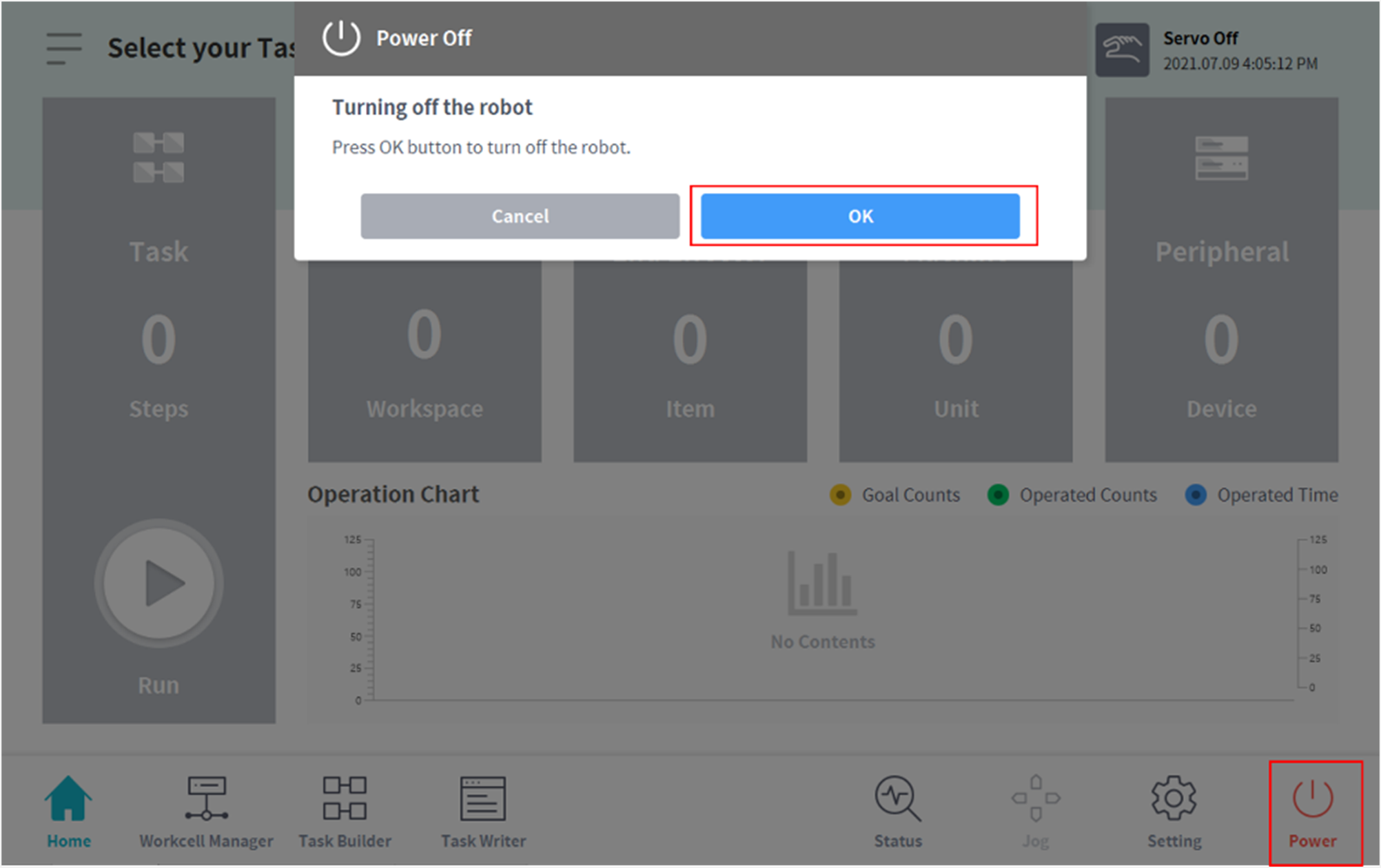

  1. The shutdown popup is displayed on the screen.

  2. Press the OK button on the shutdown popup to properly shutdown the system.


Caution

  • Press and hold the power button for more than 4 seconds to force system shutdown.

  • Forced shutdown may cause robot and controller failure.
