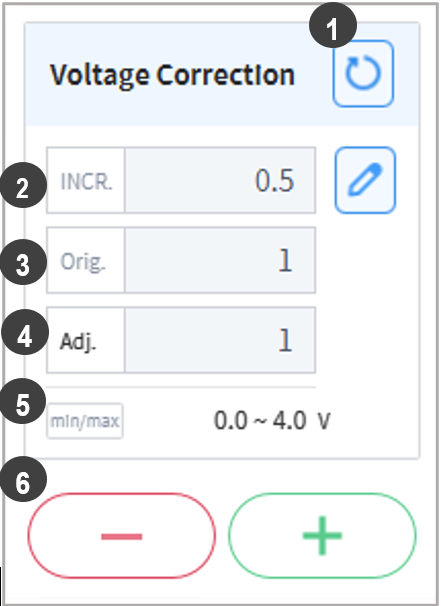

The items that are monitored in real-time during welding are Welding Voltage, Feeding Speed and Welding Current, and the items that are adjustable are Voltage Tuning, Feeding Speed, Dynamic Property, Movement Speed, Offset-Y and Offset-Z. The initial value (Orig. Target), increase amount (INCR.), and adjustment (Adj.) for each item are displayed, and the value can be increased or decreased using the +/- buttons, which are enabled when adjustment is available during welding.
|
No. |
Item |
Description |
|---|---|---|
|
1 |
Reset Button |
This resets the target adjustment value (Adj.) to the initial target value (Orig.). |
|
2 |
Increase Amount (INCR.) |
Press the |
|
3 |
Initial Target Value (Orig.) |
This is the target value set under Welding Condition Settings. |
|
4 |
Adjustment Target (Adj.) |
This is the current adjustment condition. It is set as the origin target when welding starts, and it can be increased or decreased by pressing the adjustment increment +/- buttons. |
|
5 |
Min/Max |
This displays the minimum and maximum adjustable values set under Welding Condition Settings. |
|
6 |
+/- Buttons |
Adjustment by the increase amount is applied. |
