Tutorial on How to Produce Gripper WCI&Skill

About this tutorial

This tutorial is about producing WCI (workcell Item) and skill. In this tutorial, It explains how to create a double-acting gripper using digital I/O by WCI and how to add skill.

1. Create Gripper WCI
2. Create Gripper Skill

You can learn how to do the following from this tutorial:

1. Create WCI using WCI Writer

2. Create Global functions and variables using Global Function & Variable Writer

3. Create skill using Skill Writer

4. Create WCI/Skill setup file (*.dr3) that can be used in the Workcell Manager at Teach Pendant.

Tutorial on how to create gripper WCI

Create a double-acting gripper by WCI that can be connected to the flange by digital I/O communication method.

1. Enter the basic information of the gripper.

2. Register the digital I/O communication method and configure the UI screen.

3. Add ‘Grasp’ and ‘Release’, which are the essential actions of the gripper.

4. You can create a gripper WCI with the result. The UI of the gripper WCI will be shown as below on Teach Pendant.



Tutorial on how to create gripper skill(Pick&Place)

Create pick and place skill of the gripper.

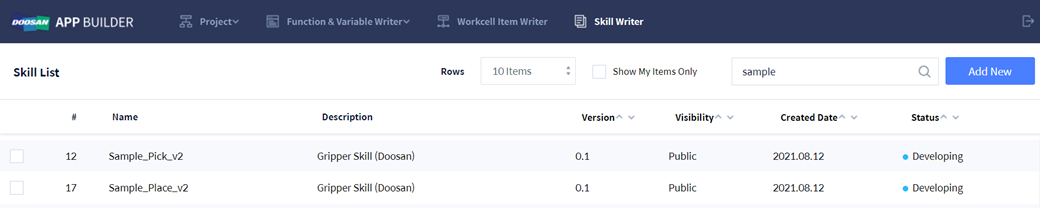

1. Enter the basic information of the skill.

2. Add pick/place skill.

3. Create and add a robot motion.

4. Create and add an I/O action.

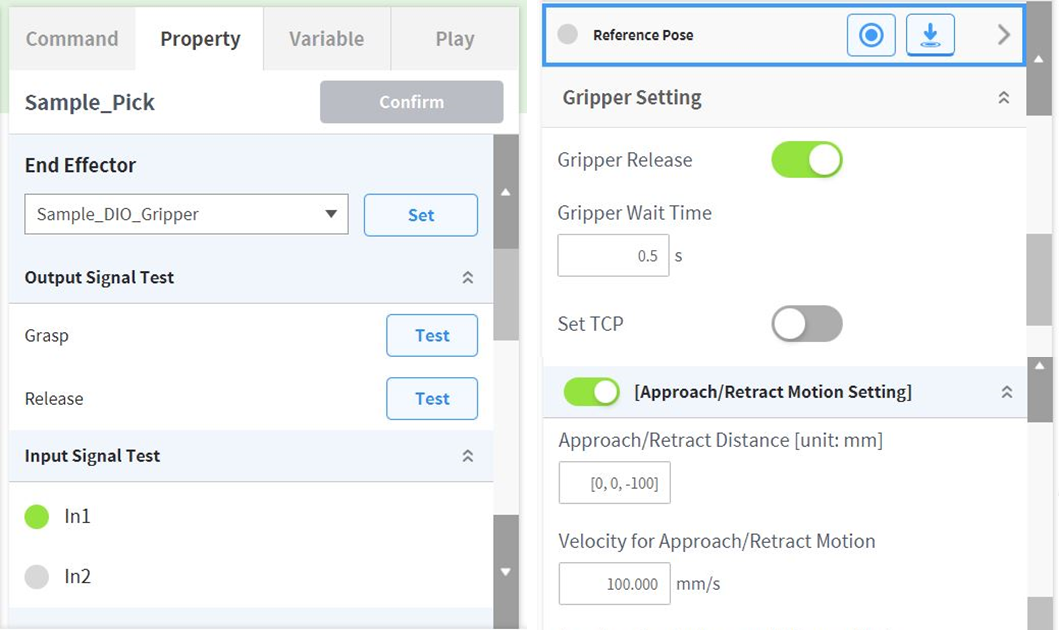

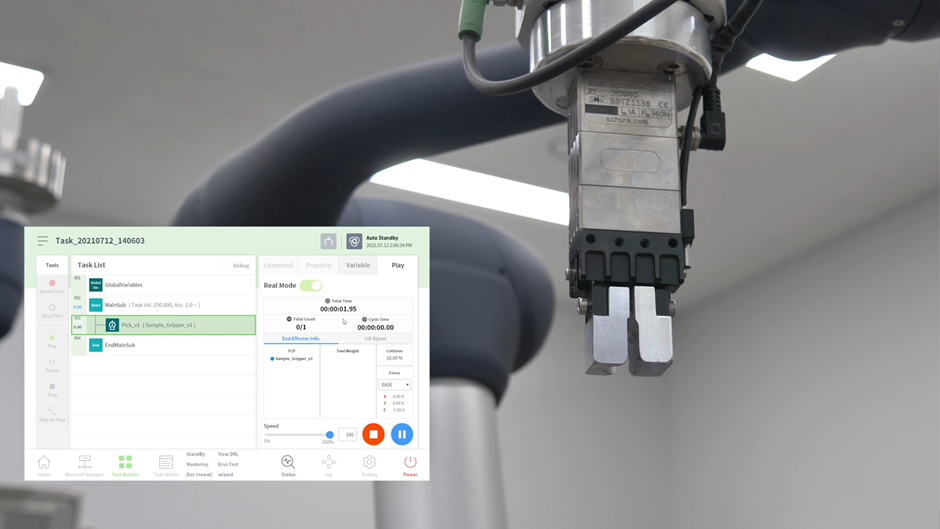

5. You can create a gripper WCI with the result. The UI of the gripper WCI skill will be shown as below on Teach Pendant.
