In this exercise, we create WCI and Skill for single-acting tool.
[WCI]: Single-Acting Tool
-
Communication Type: Digital I/O (Controller Port)
[Skill]: Tool-related Skill
-
Example Skill: Gluing/EndTask
-
Robot Motion + I/O Action
Doosan Robotics provides a Sample for this exercise on the App Builder website. You can easily create WCI and Skill for single-acting tool by copying the following Sample.

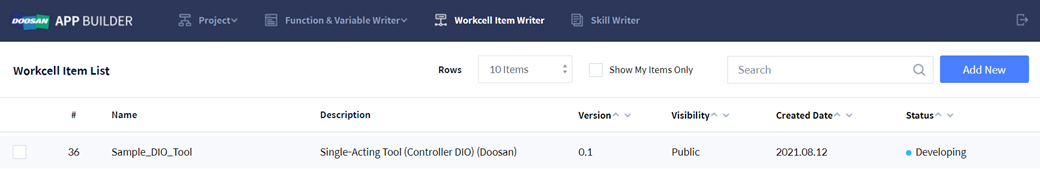

WCI Writer
-
Sample_DIO_Tool

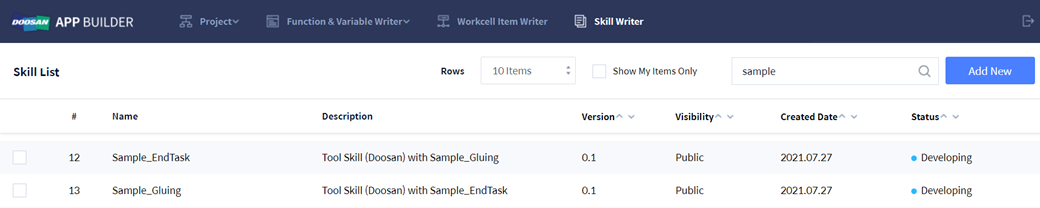

Skill Writer
-
Sample_EndTask
-
Sample_Gluing
Specific details of WCI and Skill described by this exercise and Sample may differ depending on the version of the Sample.
1) Gripper
-

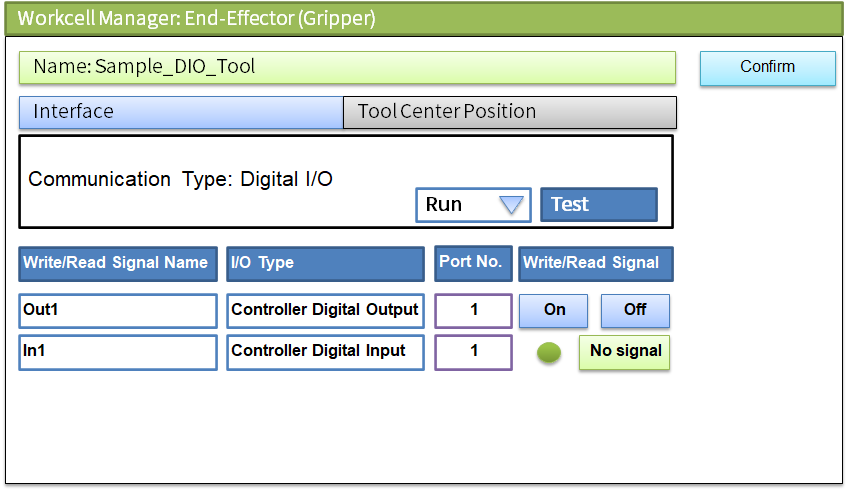

The schematic diagram of Workcell Manager UI is as follows.
2) Gluing
-

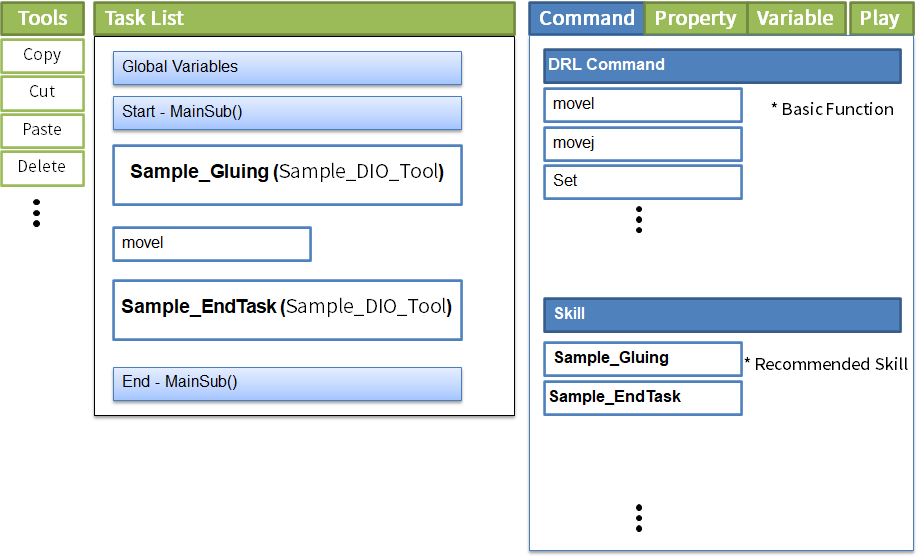

EndTask: The schematic diagram of Task Builder UI is as follows.
-
Property: The schematic diagram of Task Builder UI is as follows.
