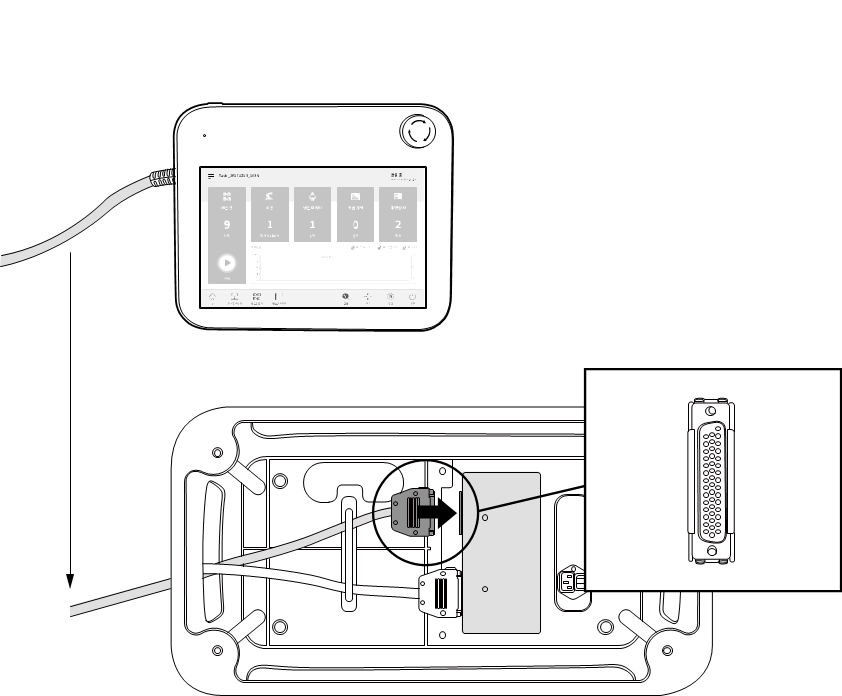

Push the teach pendant cable into the corresponding controller connector until a click is heard to prevent the cable from becoming loose.
Caution
-
Make sure that the pins of the cable end are not damaged or bent before connecting the cable.
-
If the teach pendant is used by hanging on a wall or on the controller, be careful not to trip on the connecting cables.
-
Be careful not to allow the controller, teach pendant and cable come in contact with water.
-
Do not install the controller and teach pendant a in a dusty or wet environment.
-
The controller and teach pendant must not be exposed to a dusty environment that exceeds IP20 ratings. Be especially careful in environments with conductive dust.
Note
-
When configuring the system, it is recommended that a noise reducer be installed to prevent noise effects and malfunction of the system.
-

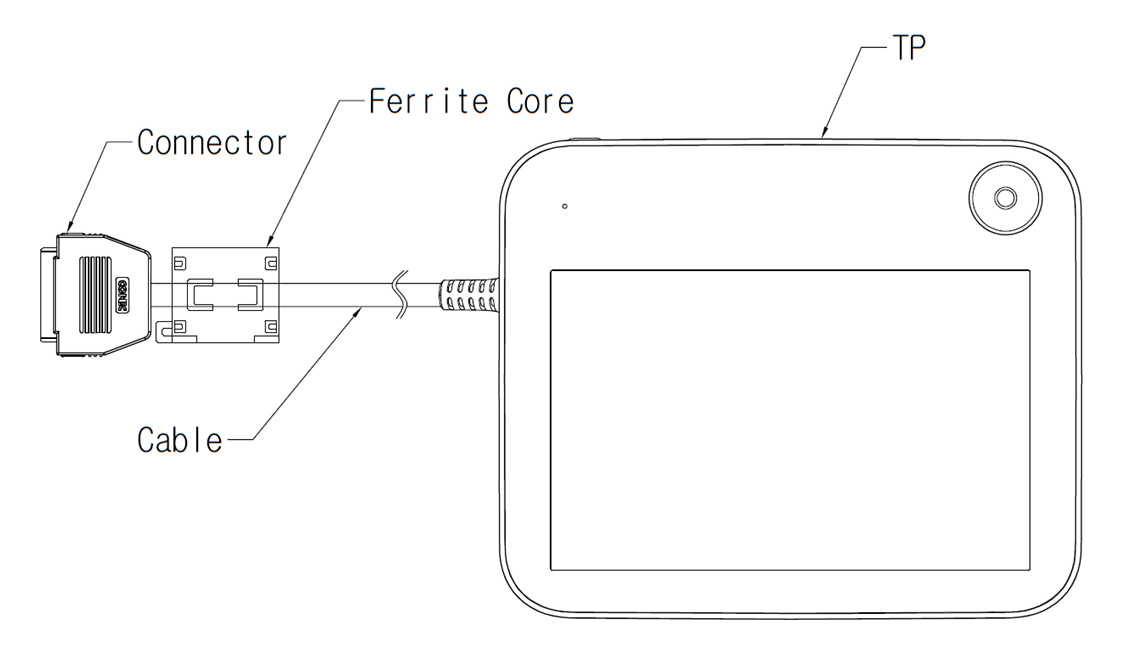

If the teach pendant is influenced by noise generated by electromagnetic waves, it is recommended to install a ferrite core on the Teach Pendant connection side to ensure normal operation. The installation location is as follows:
