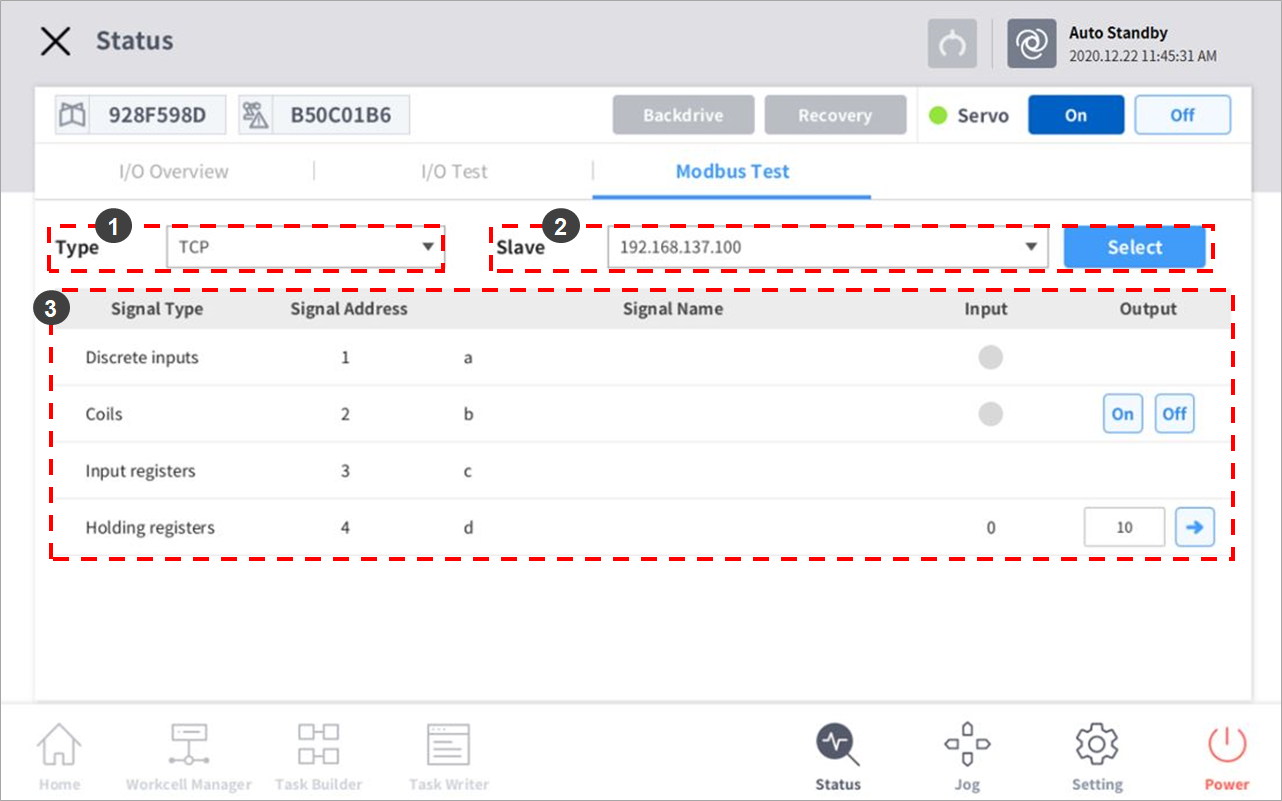

This is the menu to check and test Modbus signals set at Modbus TCP, Modbus RTU, and predefined Modbus.
|
No. |
Item |
Description |
|
1 |
Modbus Type |
Select the Modbus type to check. TCP, RTU, and predefined Modbus are available. |
|
2 |
Slave |
Displays the list of IPs/Ports of the slave set of the selected Modbus type. When selected, it displays a list of corresponding signals. |
|
3 |
Signal List |
Displays a list of signals set on the selected slave. Input and output signals can be checked. |
