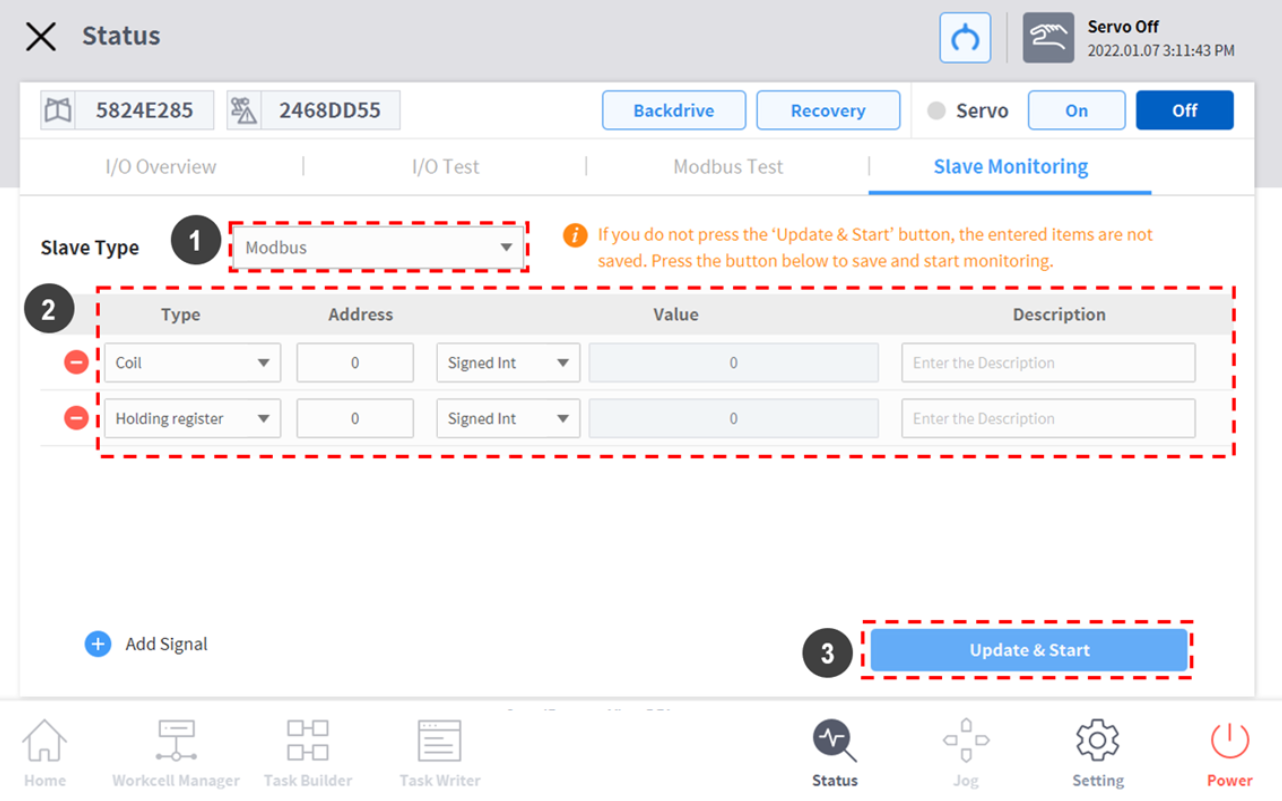

It is the menu where monitoring for all Slave functions offered by the industrial Ethernet Slave (PROFINET, EtherNet/IP, Modbus) can be accessed.
|
No. |
Item |
Description |
|
1 |
Slave Type |
Select the slave type to be monitored. Modbus, EtherNet/IP and Profinet are available. |
|
2 |
Settings List |
Monitoring items can be set by entering the type, address, output and description. |
|
3 |
Update & Start |
It can update monitoring setting information and start monitoring. Even if the slave type is changed after execution, each setting is maintained. |
