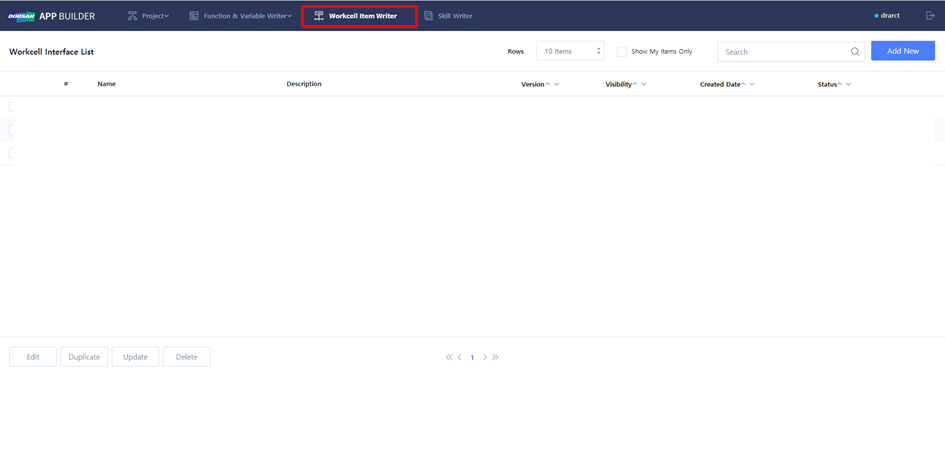

Create WCI using Workcell Item Writer.
-
WCI can be newly created, or existing WCI can be modified.
-

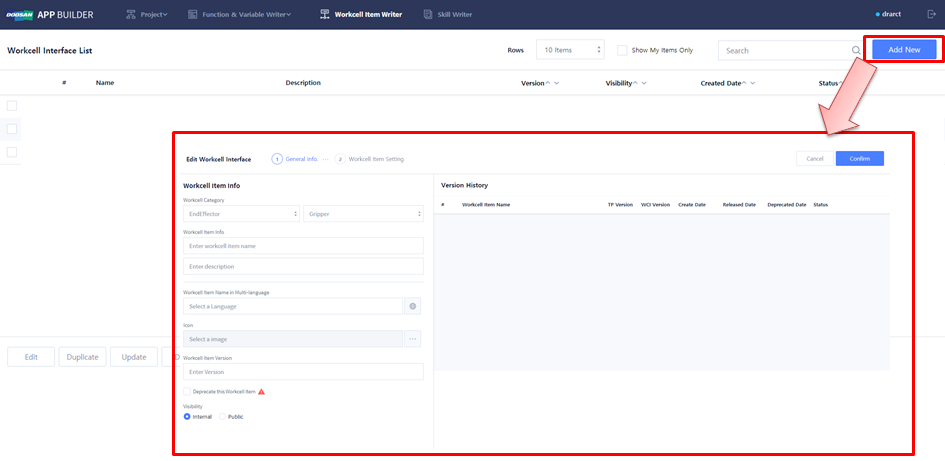

Create new WCI: Add New
-
Modify existing WCI: Check one of existing WCI → Edit
Write and modify WCI (General Info)
-
Select WCI Category.EndEffector → Gripper
-
Enter WCI Name and Description in WCI Info.Modbus_TCPModbus TCP gripper
-
Enter the name or Language Code of WCI in Multi-language input field (The name written here will appear on teach pendant).Choose: (none)Enter: Modbus_gripper
-
Select WCI icon.gripper
-
Enter WCI version.0.1
-
Select Visibility Type.Internal

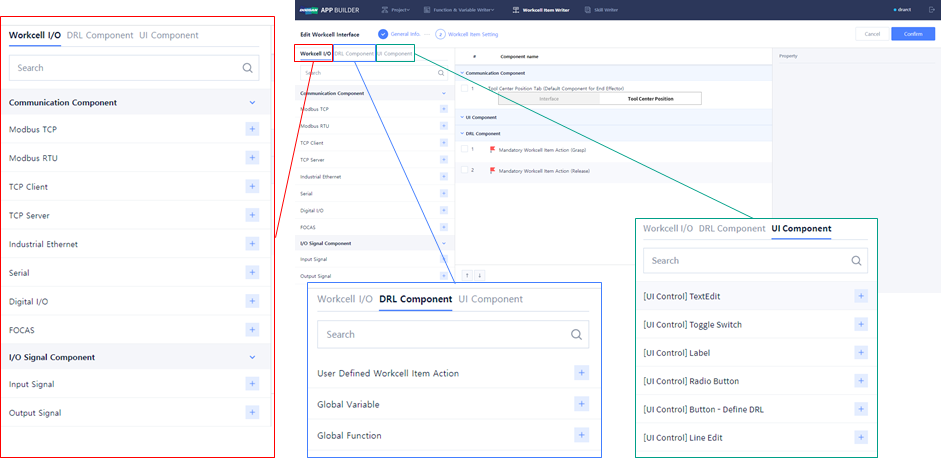

Write and modify WCI (Workcell Item Setting)
-
Workcell I/O Component: Communication Component
-
DRL Component: Component that writes the functions of WCI Action
-
UI Component: Component that provides user input connection function

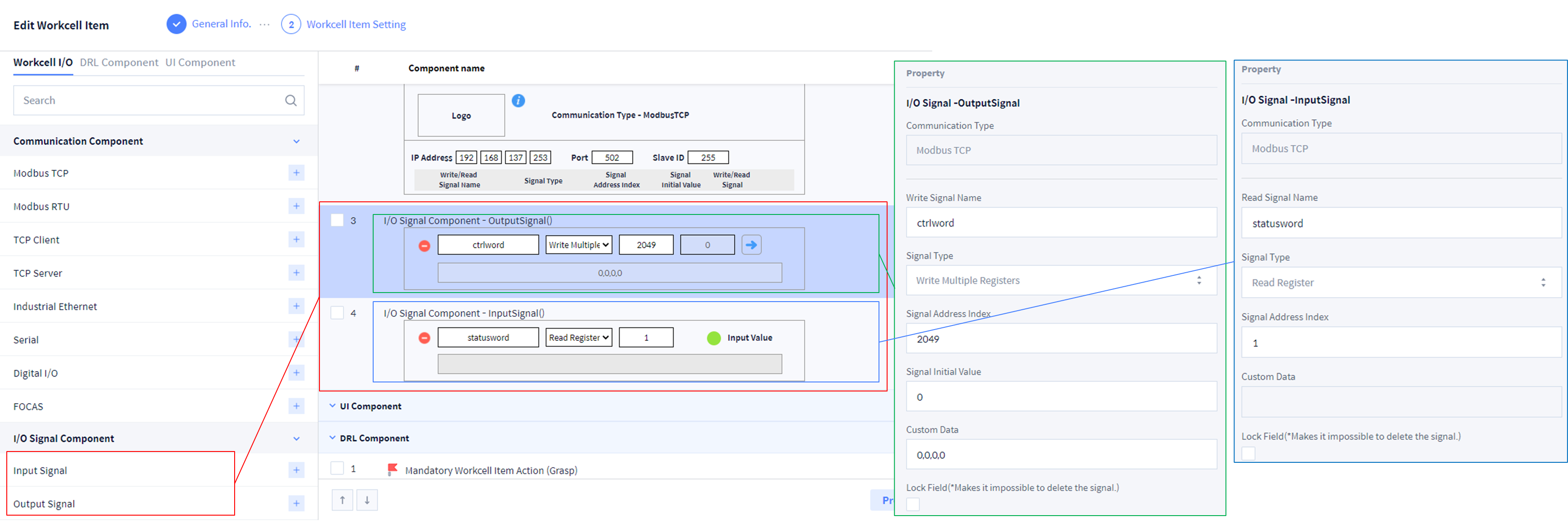

Workcell I/O Component

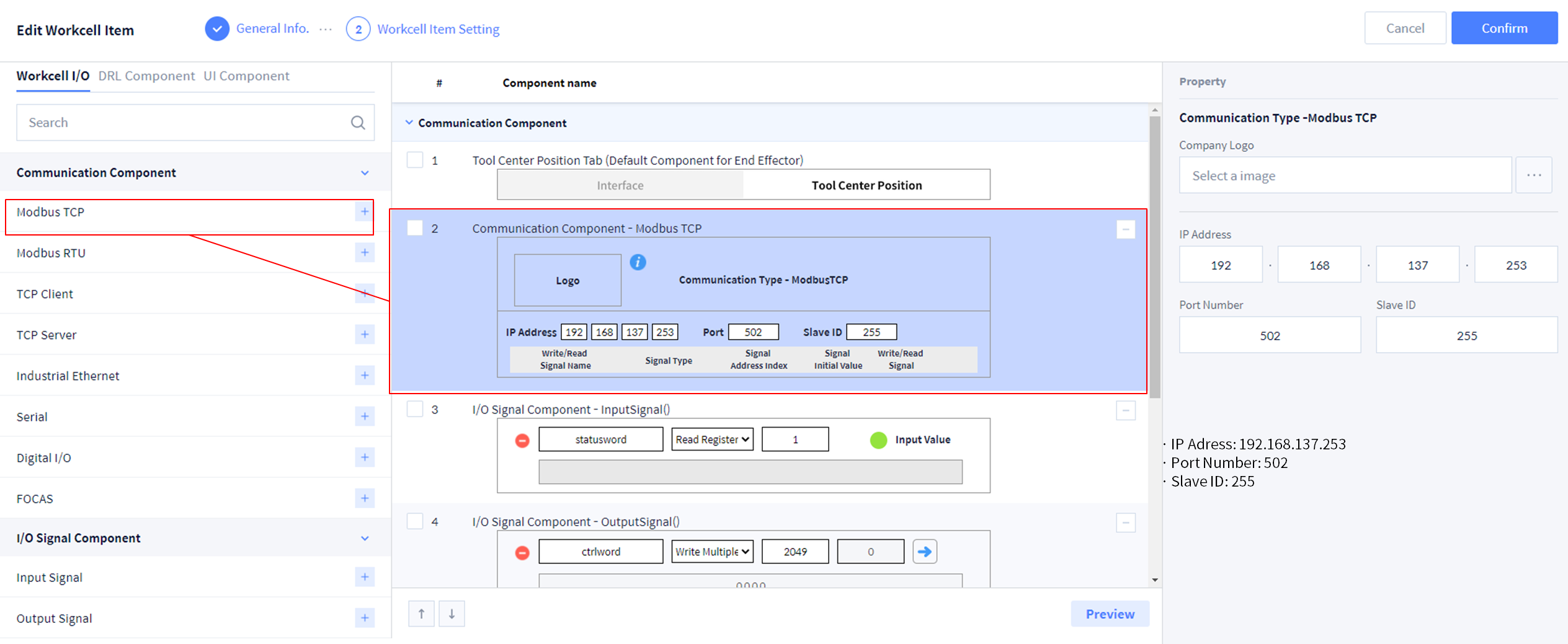

1. Add Modbus TCP in Communication Component and enter the Property values as follows.
-
IP Adress : 192.168.137.253
-
Port Number : 502
-
Slave ID : 255
2. Add Output Signal and enter the Property values as follows.
-
Write Signal Name : ctrlword
-
Signal Type : Write Multiple Registers
-
Signal Address Index : 2049
-
Signal Initial Value : 0
-
Custom Data : 0,0,0,0
3. Add Input Signal and enter the Property values as follows.
-
Write Signal Name : statusword
-
Signal Type : Red Registers
-
Signal Address Index : 1

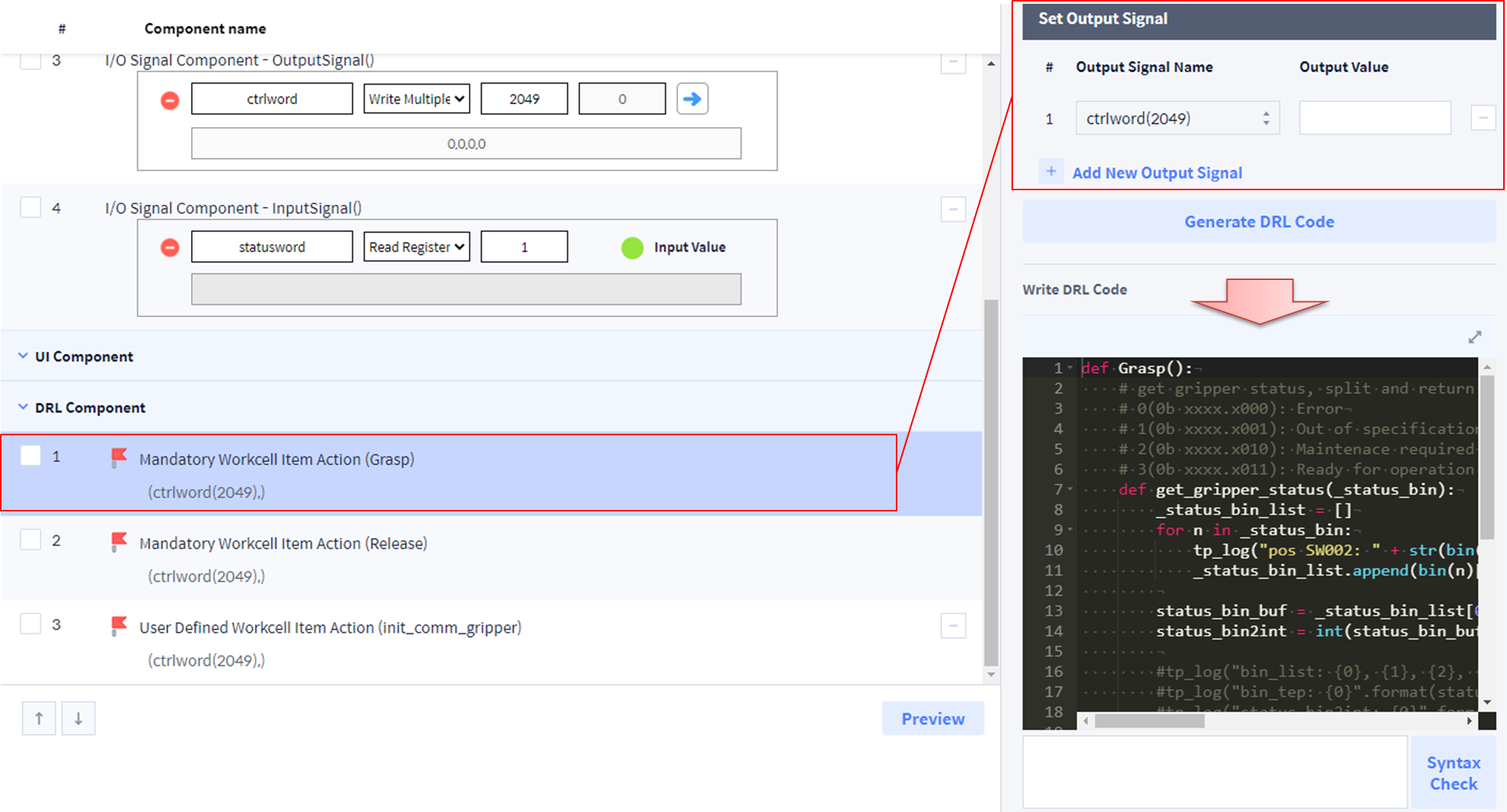

DRL Component
1. Mandatory WCI Action: Set up essential functions related to WCI.
-
Gripper → Grasp
def Grasp():
# get gripper status, split and return the 2,1,0 bit of first byte of the status word .
# 0(0b xxxx.x000): Error
# 1(0b xxxx.x001): Out of specification
# 2(0b xxxx.x010): Maintenace required
# 3(0b xxxx.x011): Ready for operation (= there is no error)
def get_gripper_status(_status_bin):
_status_bin_list = []
for n in _status_bin:
tp_log("pos SW002: " + str(bin(n)[2:]))
_status_bin_list.append(bin(n)[2:])
status_bin_buf = _status_bin_list[0][5:8]
status_bin2int = int(status_bin_buf, 2)
return status_bin2int
set_modbus_output_multi("ctrlword",[int('0000010000000000',2),int('0000001100000000',2),0,0])
wait(0.1)
set_modbus_output_multi("ctrlword",[int('1000010000000000',2),int('0000001100000000',2),0,0]) #grasp
wait(2)
status = get_modbus_input_multi("statusword") #StatusWord
#tp_log("pos SW002: " + str(status))
now_gripper_status = get_gripper_status(status)
tp_log("gripper_status: " + str(now_gripper_status))
while True:
if now_gripper_status == 3:
break
else:
tp_popup("Error: Wrong gripper status!, (CW, 512)", DR_PM_MESSAGE)

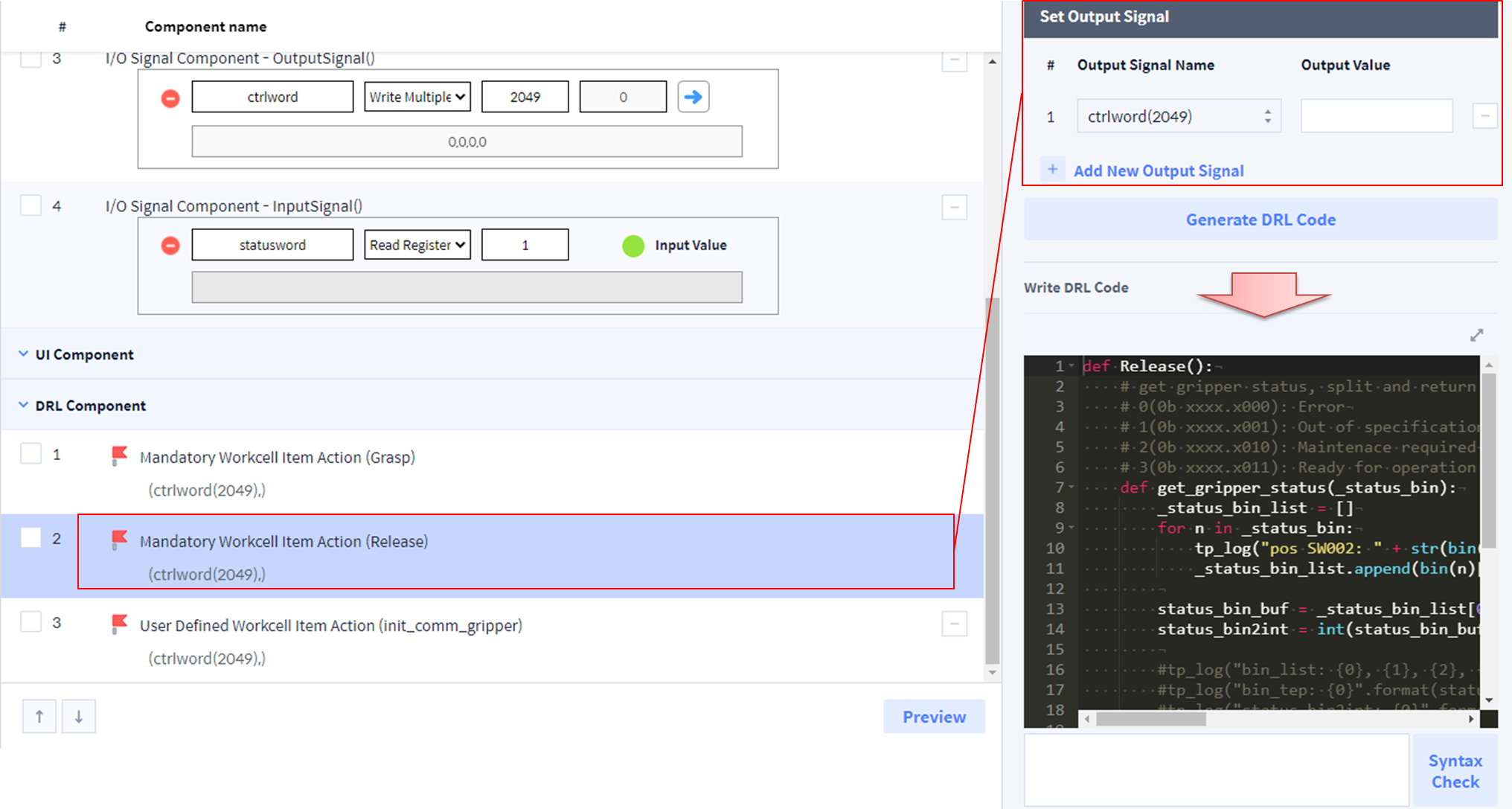

2. Mandatory WCI Action: Set up essential functions related to WCI.
-
Gripper → Release
def Release():
# get gripper status, split and return the 2,1,0 bit of first byte of the status word .
# 0(0b xxxx.x000): Error
# 1(0b xxxx.x001): Out of specification
# 2(0b xxxx.x010): Maintenace required
# 3(0b xxxx.x011): Ready for operation (= there is no error)
def get_gripper_status(_status_bin):
_status_bin_list = []
for n in _status_bin:
tp_log("pos SW002: " + str(bin(n)[2:]))
_status_bin_list.append(bin(n)[2:])
status_bin_buf = _status_bin_list[0][5:8]
status_bin2int = int(status_bin_buf, 2)
return status_bin2int
set_modbus_output_multi("ctrlword",[int('0000010000000001',2),int('0000001100000000',2),0,0])
wait(0.1)
set_modbus_output_multi("ctrlword",[int('1000010000000001',2),int('0000001100000000',2),0,0]) #release
wait(2)
status = get_modbus_input_multi("statusword") #StatusWord
now_gripper_status = get_gripper_status(status)
tp_log("gripper_status: " + str(now_gripper_status))
while True:
if now_gripper_status == 3:
break
else:
tp_popup("Error: Wrong gripper status!, (CW, 512)", DR_PM_MESSAGE)

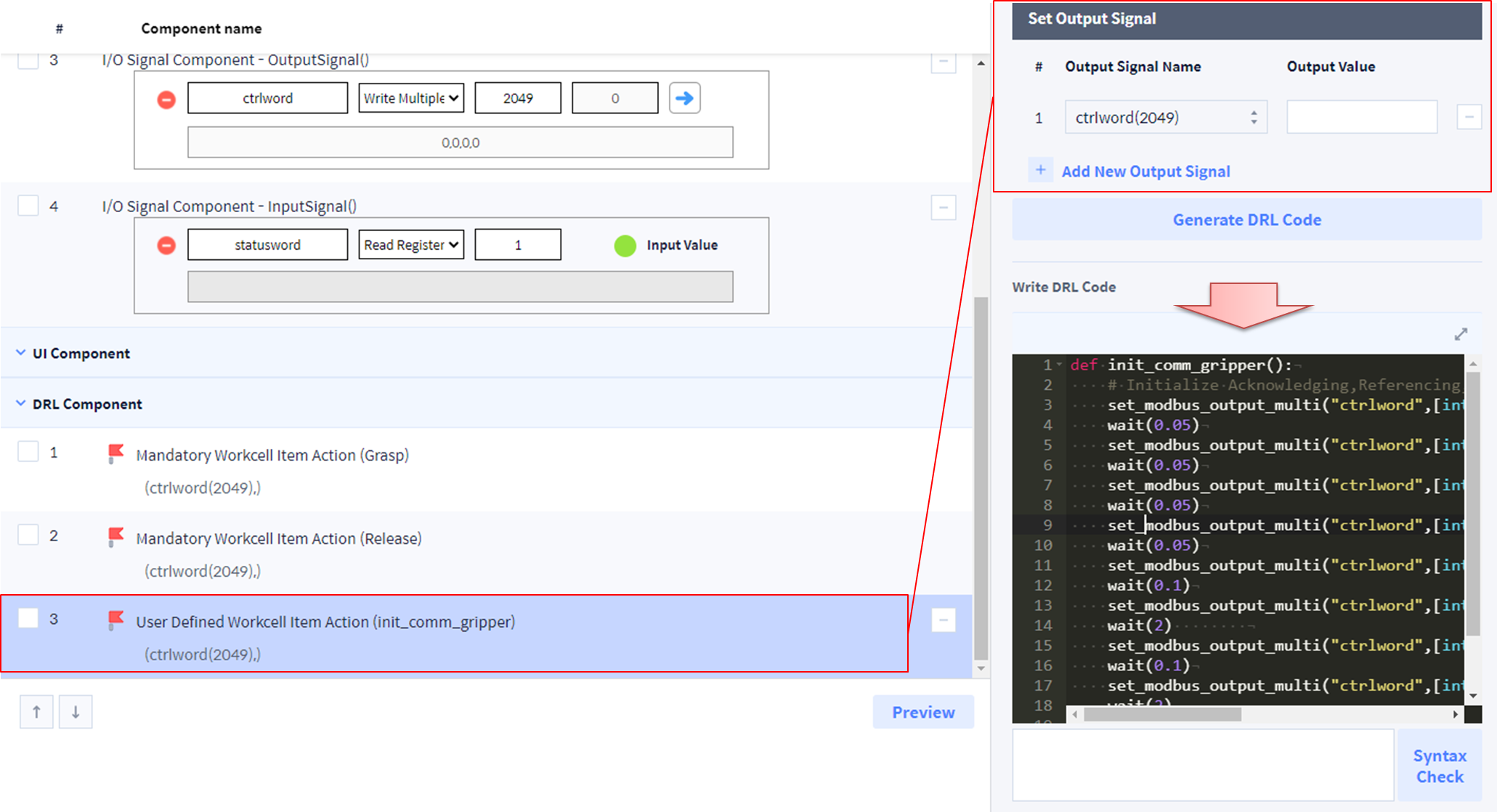

3. User Defined WCI Action: Optional functions related to WCI can be added.
-
Init_comm_gripper
def init_comm_gripper():
# Initialize Acknowledging,Referencing,Position words
set_modbus_output_multi("ctrlword",[int('0000000100000000',2),0,0,0]) #00 00 00 01 00 00 00 00
wait(0.05)
set_modbus_output_multi("ctrlword",[int('1000000100000000',2),0,0,0]) #10 00 00 01 00 00 00 00
wait(0.05)
set_modbus_output_multi("ctrlword",[int('0000001000000000',2),0,0,0]) #00 00 00 10 00 00 00 00
wait(0.05)
set_modbus_output_multi("ctrlword",[int('1000001000000000',2),0,0,0]) #10 00 00 10 00 00 00 00
wait(0.05)
set_modbus_output_multi("ctrlword",[int('0000010000000000',2),int('0000000000000000',2),0,0])
wait(0.1)
set_modbus_output_multi("ctrlword",[int('1000010000000000',2),int('0000000000000000',2),0,0])
wait(2)
set_modbus_output_multi("ctrlword",[int('0000010000000001',2),int('0000000000000000',2),0,0])
wait(0.1)
set_modbus_output_multi("ctrlword",[int('1000010000000001',2),int('0000000000000000',2),0,0])
wait(2)
status = get_modbus_input_multi("statusword") #StatusWord
tp_log("log SW: " + str(status))
UI Component

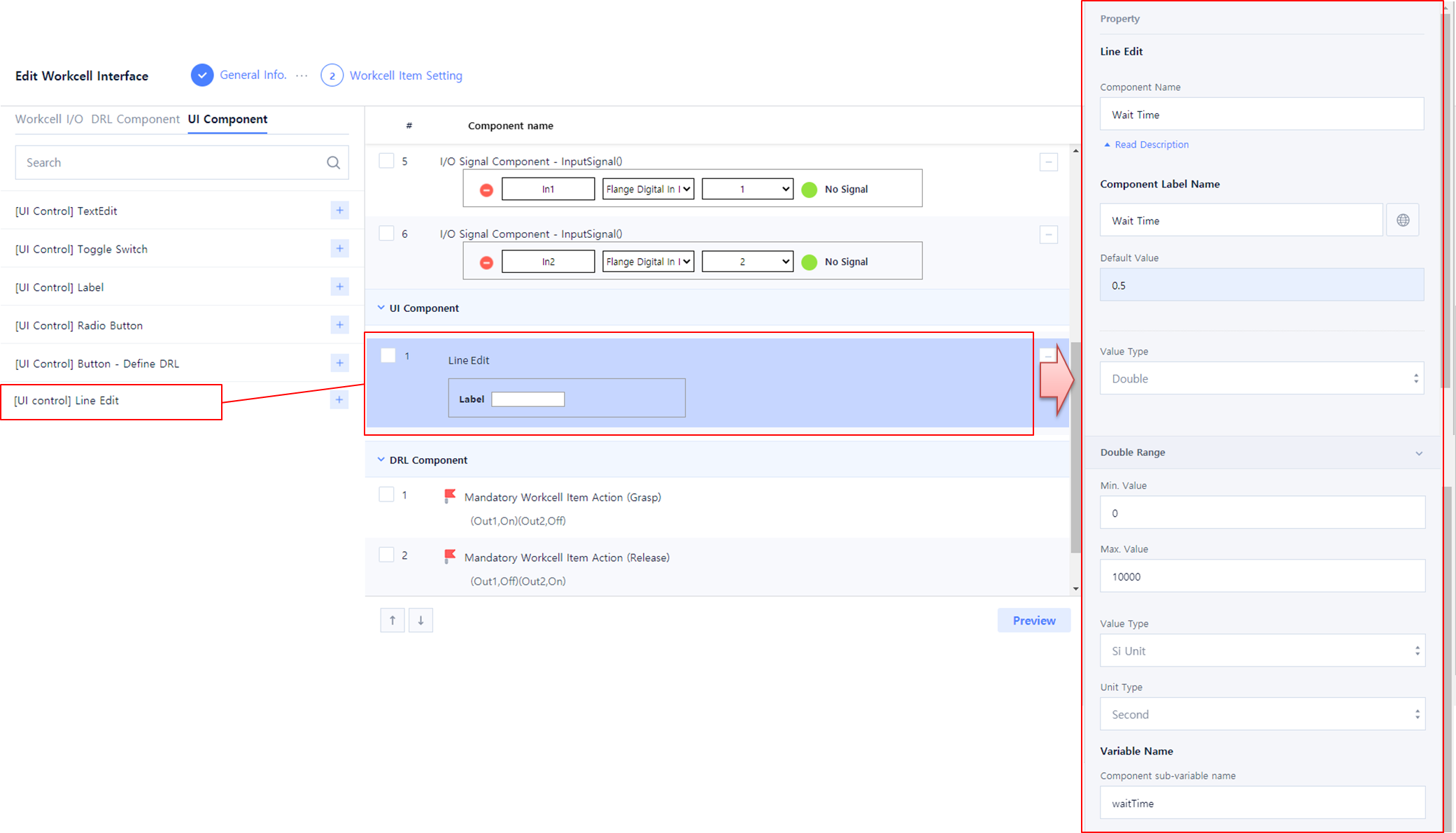

Add Line Edit in UI Component and enter the Property values as follows.
-
Component Name : Wait Time
-
Component Label Name : Wait Time
-
Default Value : 0.5
-
Value Type : Double
-
Double Range
-
Min Value : 0
-
Max Value : 10000
-
Value Type: SI Unit
-
Unit Type: Second
-
-
Variable Name
-
Component sub-variable name : waitTime
-

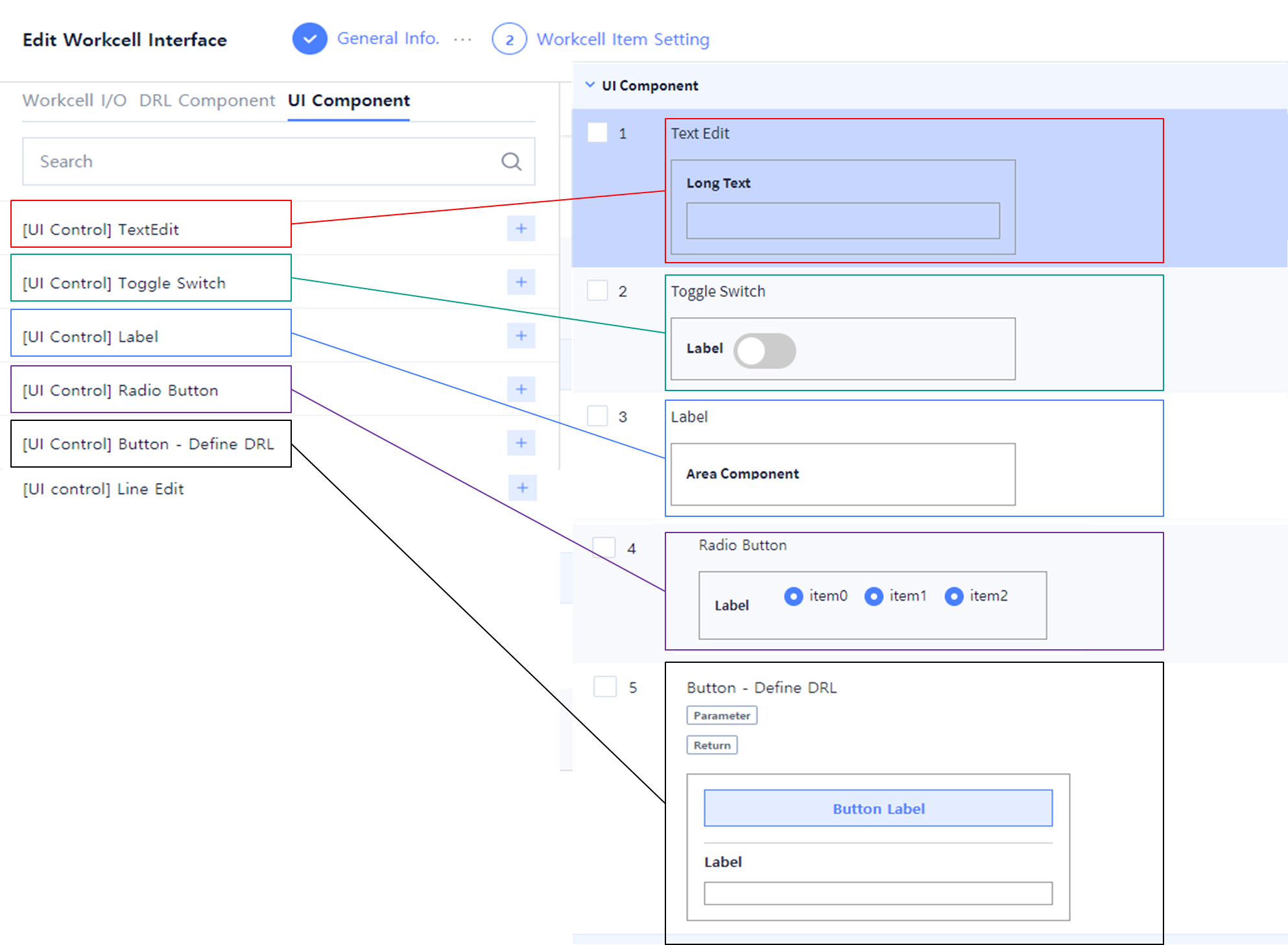

The following UI Components can be used as user input.
-
Label
-
Text Edit
-
Toggle Switch
-
Radio Button
-
Button – Define DRL

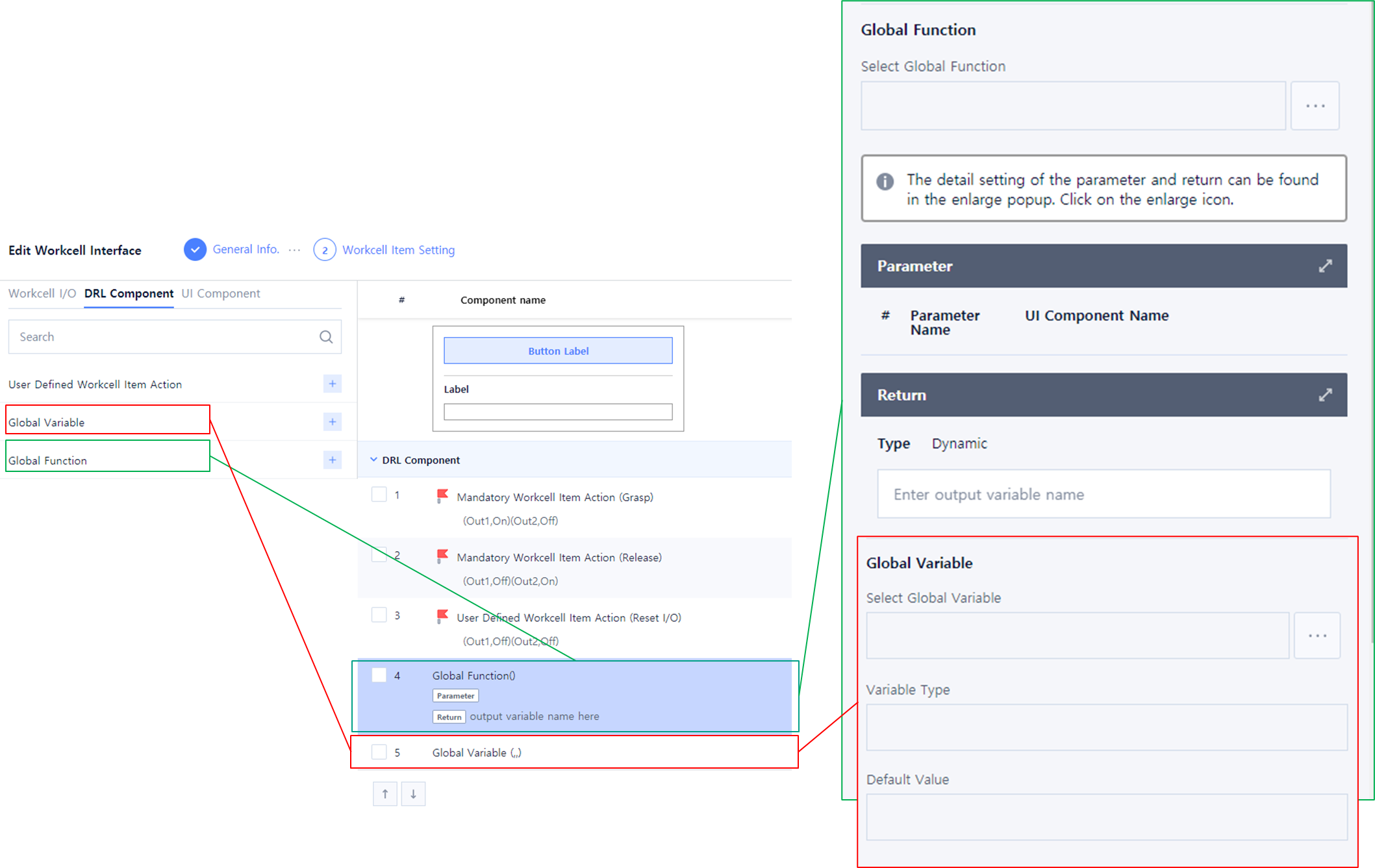

The following DRL Components can be used
-
Global Variable
-
Global Function
Write and modify WCI (Workcell Item Setting)
-
Save WCI → Confirm
-

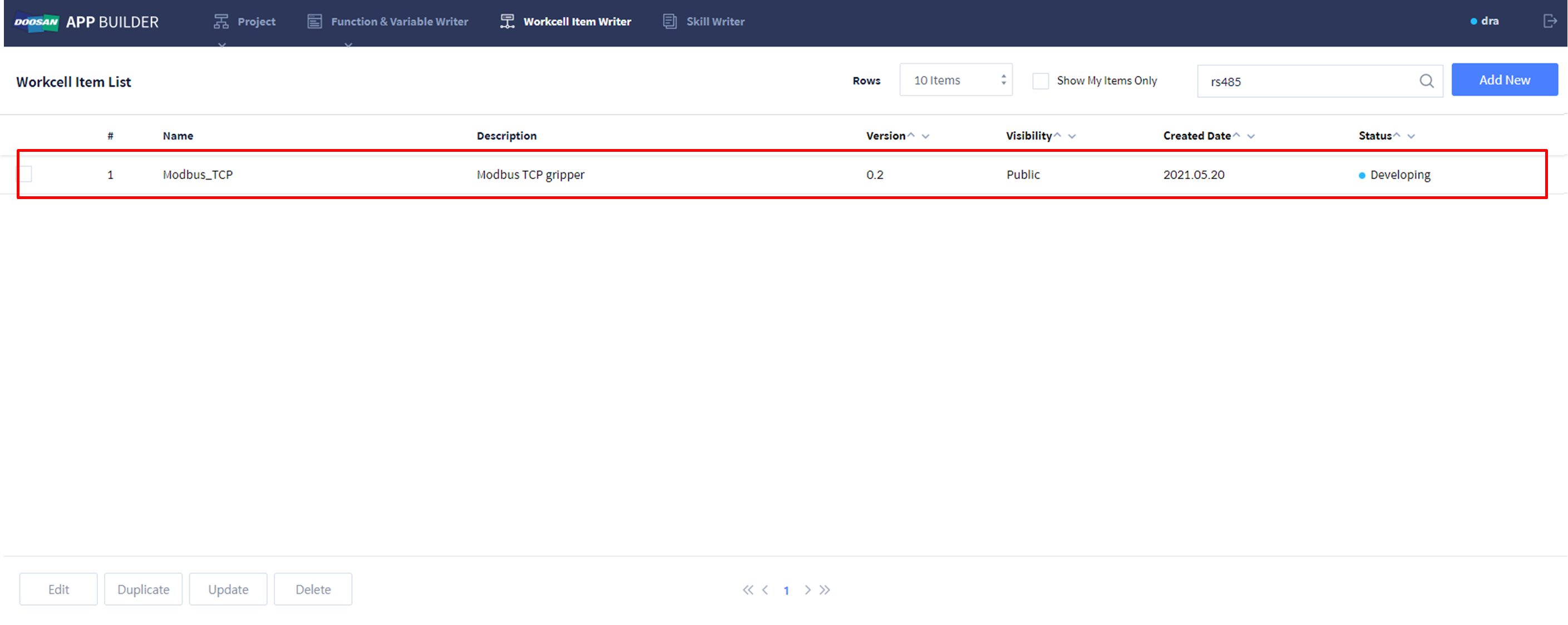

WCI list can be checked as follows.
