Run a Program

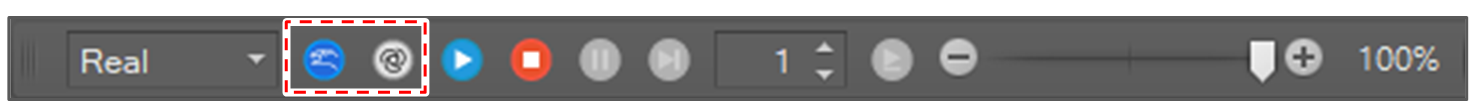

From Controller GF02070000 version, the user must change to the automatic mode before running the program.
When connected to the simulator, there is no need to switch modes.

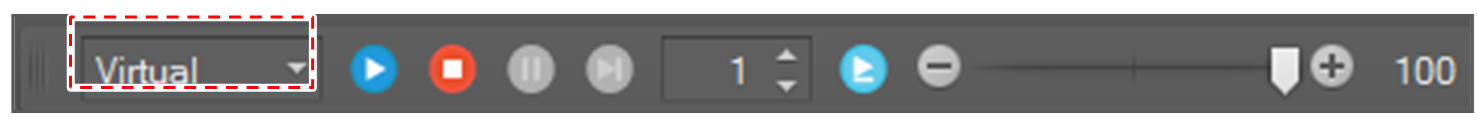

To run a program, Set Running Target on the toolbar.

  • Virtual: the program runs in the Virtual

  • Real: the program runs in the Real

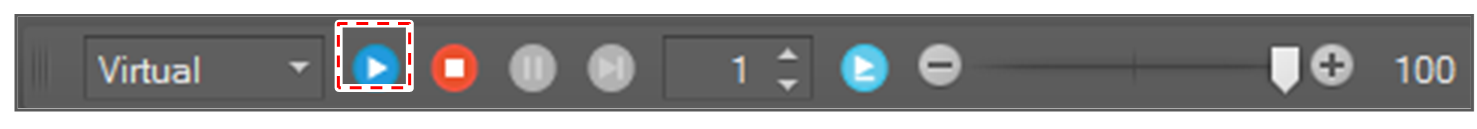

Click the Play (F5) button on the toolbar.


If the program starts without error, the current execution line is displayed in the editor.

Pause and Resume a running program

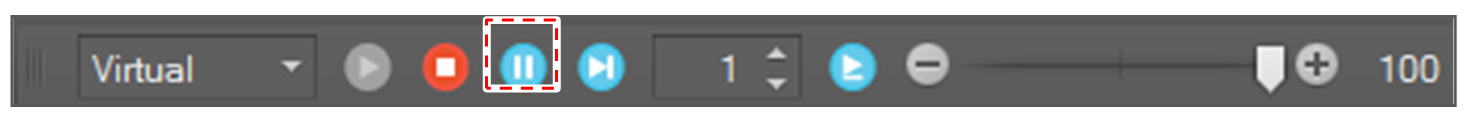

To pause the program, click the Pause Program Run image2021-11-29_14-13-33.png (Ctrl+Alt+Break) button.

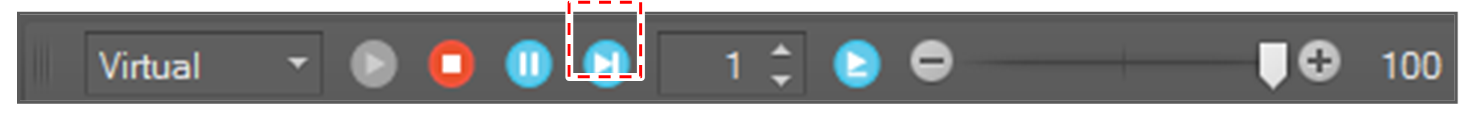

To resume the program, click the Continue to Run Program image2021-11-29_14-15-14.png (F5) button.


Stop Program Running

If you click the Stop Program Run image2021-11-29_14-16-23.png (Shift+F5) button while the program is running, the program is stopped.
