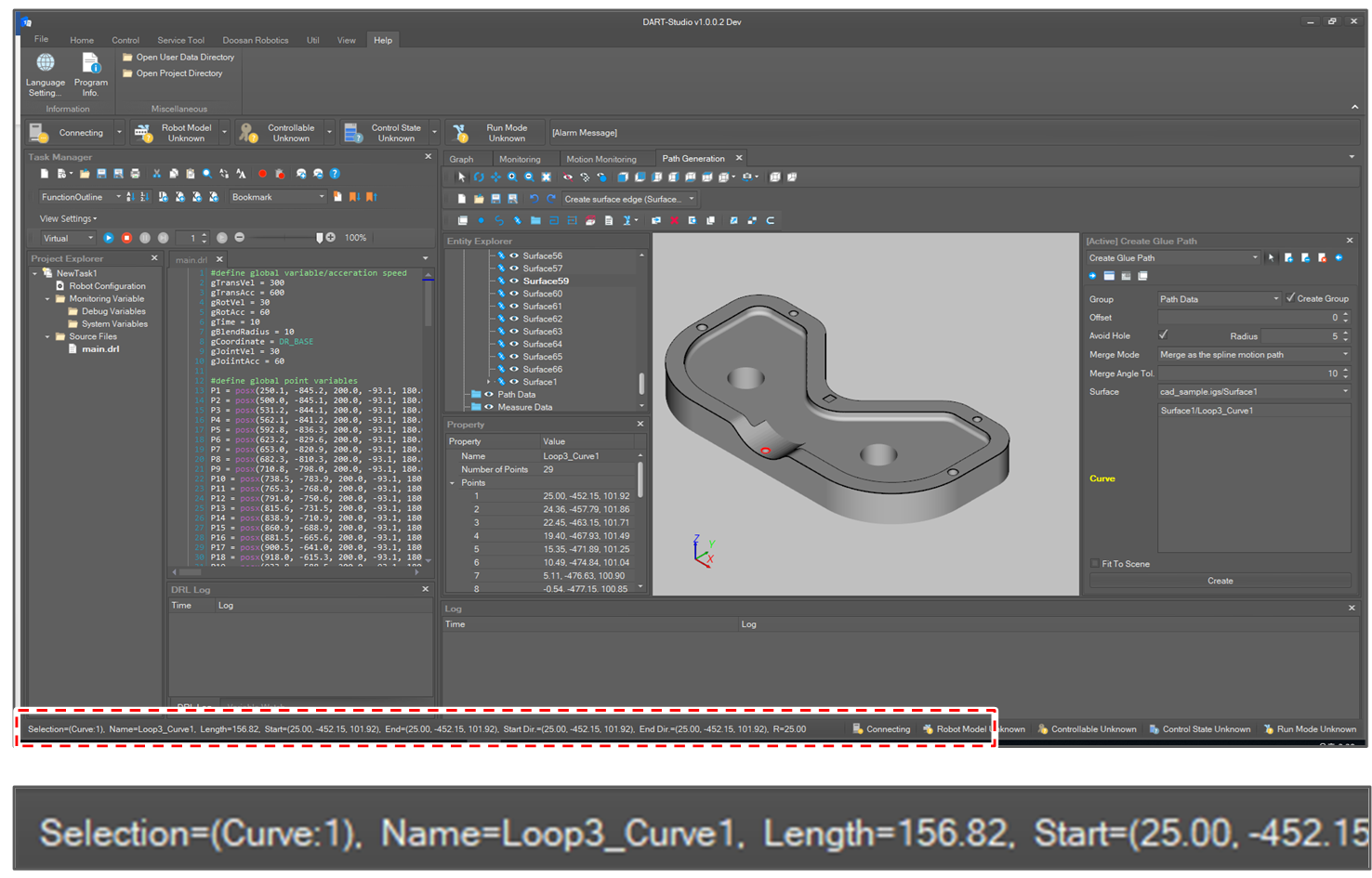

The status bar displays summary information for the selected object.
The displayed information depends on the type and the number of the selected items. The type and the number of the selected items and displayed information are as below.
|
1 point |
Coordinates. |
|
2 points |
Coordinates, Distance between two points. |
|
3 points |
Coordinates, Angle between (Point2-Point1) and (Point2-Point3). |
|
3 or more points |
Radius of fitting circle. |
|
1 curve |
Coordinates of start and end point. Length of Curve, Tangent direction of start and end point. |
|
2 lines |
Angle between two lines. |
|
1 arc |
Radius of fitting circle. |
