Create Distance Tool and Set Teaching Area

1

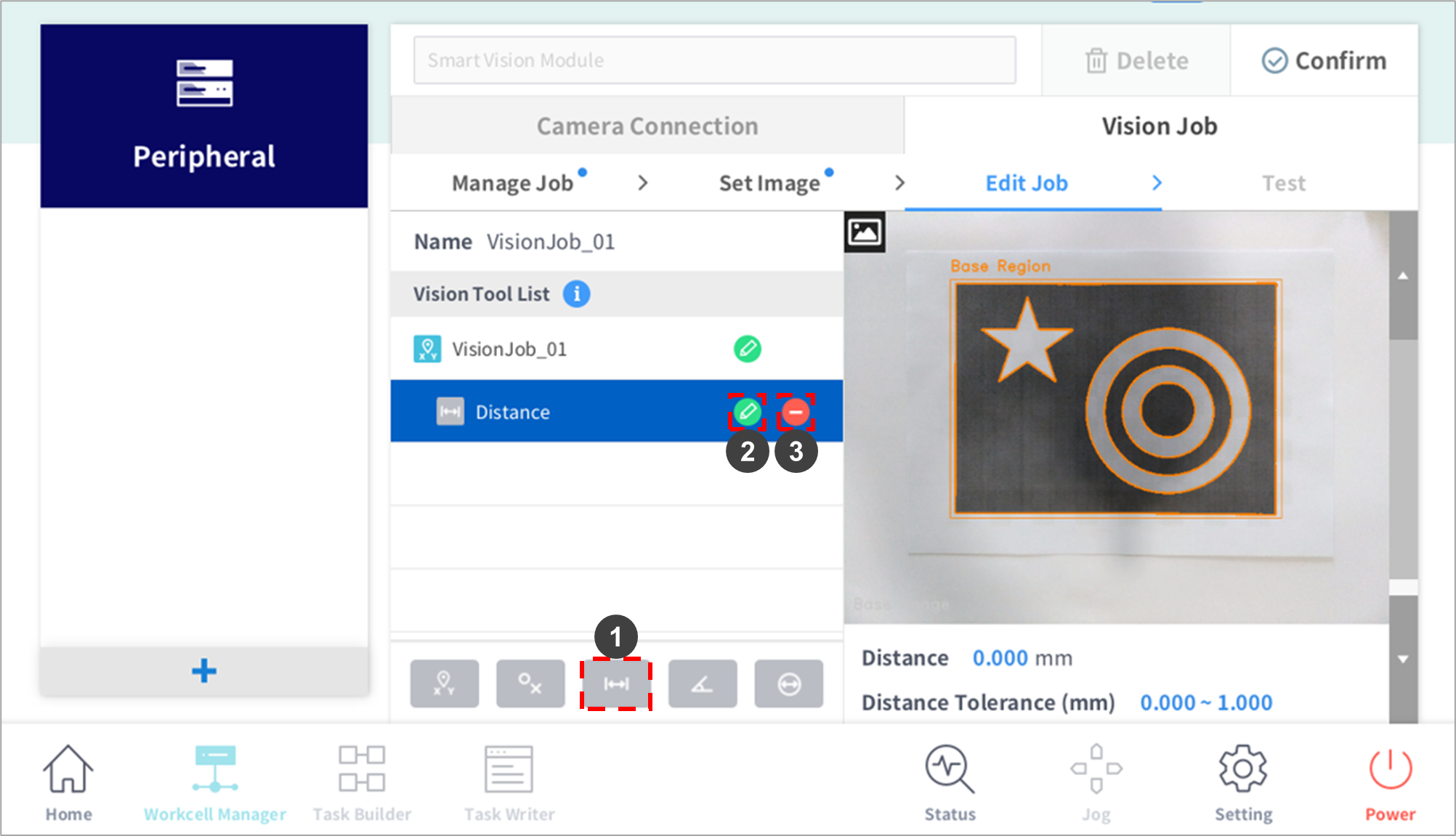

Add Distance Tool

Adds a Distance Tool to the Vision Tool List.

2

Edit

A setting window of the job selected from the Vision Tool List is displayed.

3

Delete

The selected job from the Vision Job List is deleted.

4

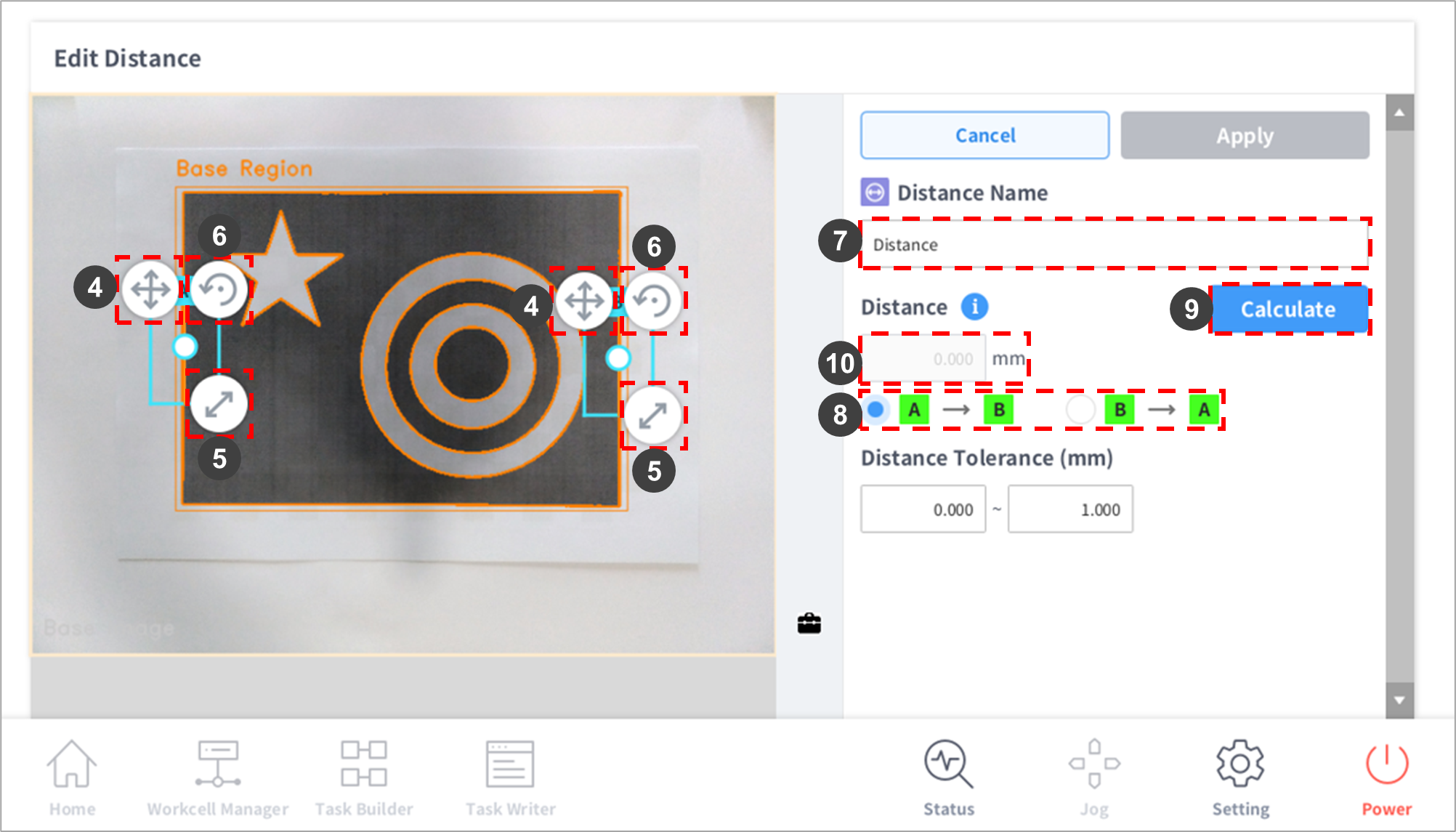

Move Teaching Area

Press and hold the arrow to move the teaching area.

5

Adjust Teaching Area Size

Press and hold the arrow to adjust the teaching area size.

• Adjust the area to allow  one edge to be captured in it.

6

Adjust Teaching Area Size (circular arrow)

Press and hold the arrow to rotate the teaching area.

7

Edit Job Name

A virtual keyboard is displayed, and the job name can be edited.

Press the Apply button to apply the setting.

8

Select Directions of Line (A, B)

Select the directions for A > B and B >A.

• The direction is immediately applied when the button is pressed.

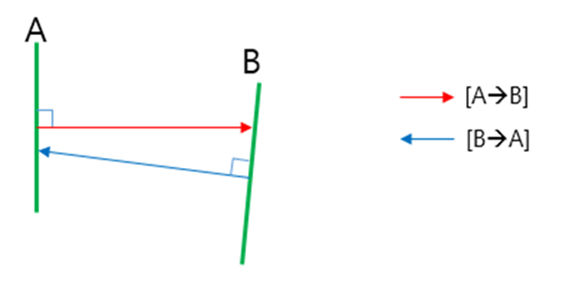

• [AàB] measurement refers to the length of the line connecting the center of line A to line B or an extension line of line B.

9

Calculate

• Creates a line that connects the center position of lines A and B when lines exist in the two teaching areas (A, B).

• The direction is immediately applied when the button is pressed.

10

Distance Display

• Enter the pixel value allowed within the detected area in the edit window.

• Values exceeding the value range entered are not detected.

11

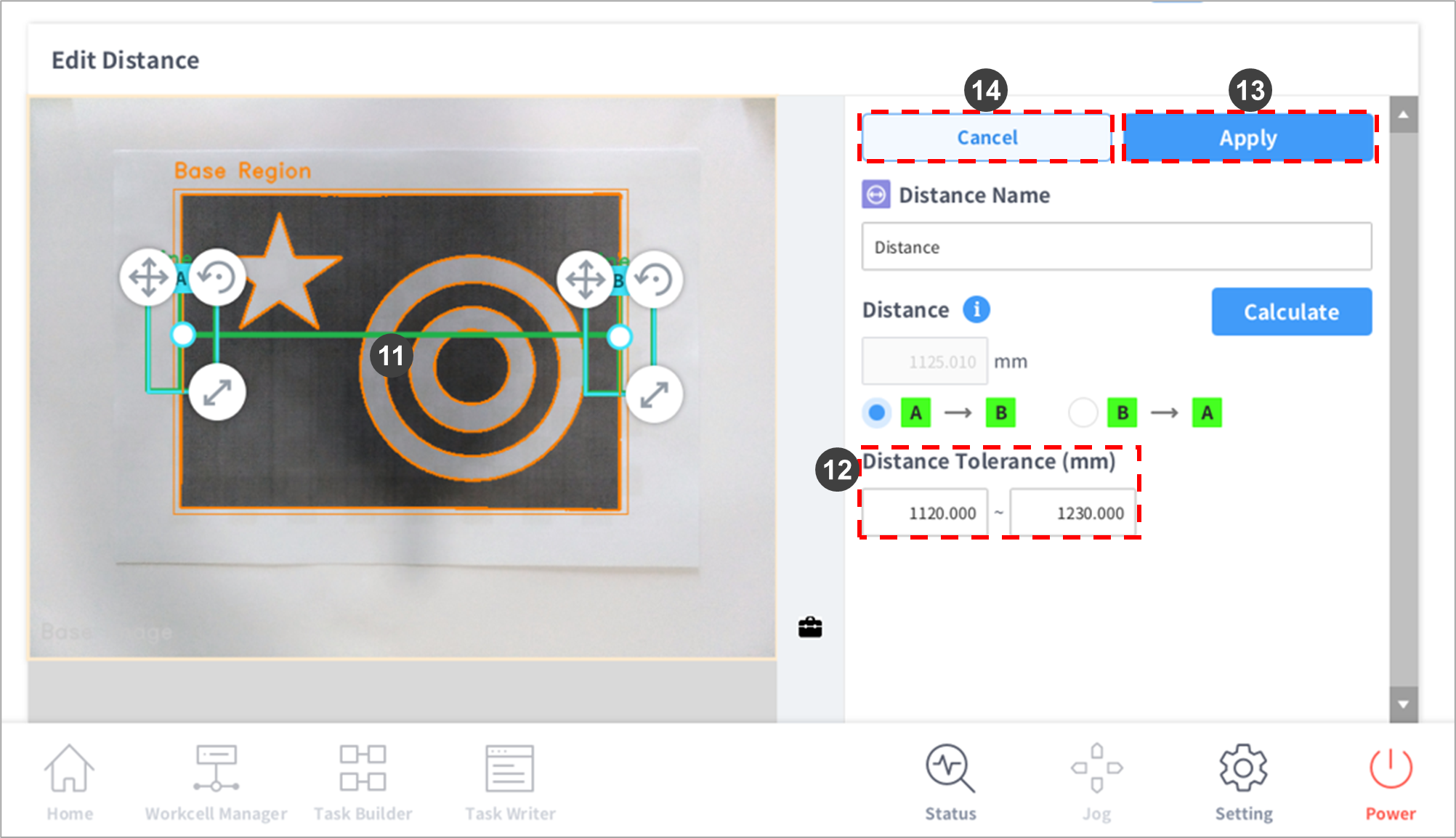

Distance Image Display

Displays the distance between lines detected in two teaching areas in the edit window.

12

Distance Tolerance Setting

Sets the line tolerance from the reference line value.

• If a value exceeds the Test tolerance range, the inspection result outputs 0.

• Press the Apply button to apply the setting..

13

Apply

Applies Vision Job settings.

14

Cancel

Cancels Vision Job Tool settings.
