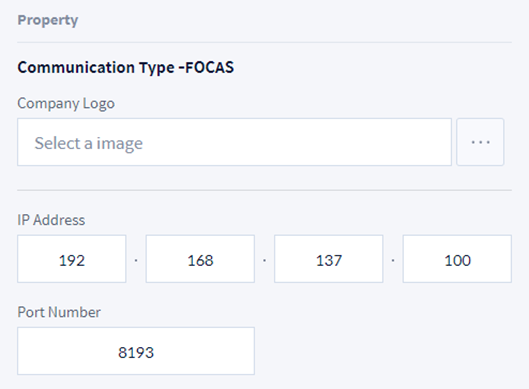

FOCAS Type

FOCAS

Item

Description

Company Logo

Attach a logo image of the company manufacturing the Worcell Item.

IP Address

Enter the IP adress for the remote location.

Port Number

Enter the port number for the remote location.

Output/Input Signal

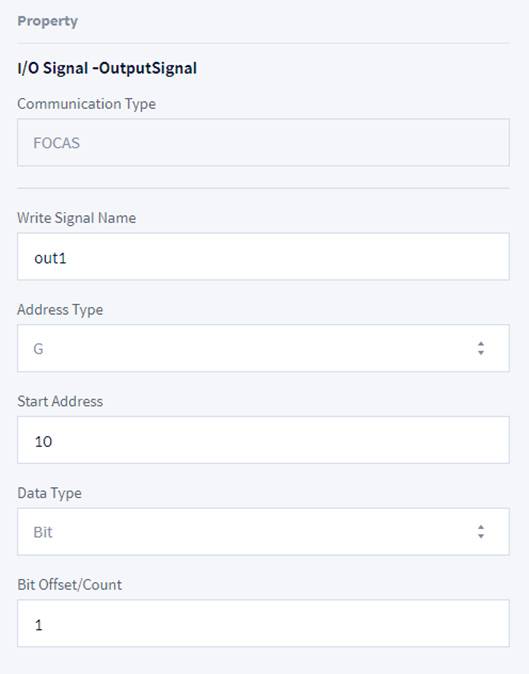

Output Signal

Item

Description

Write Signal Name

Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.

Address Type

Set the address type of FOCAS.

  • Address Type
    - G,F,Y,X,A,R,T,K,C,D,M,N,E,Z

Start Address

Set the start address.

Data Type

Set the data type of FOCAS.

  • Data Type
    - Bit, Char, Word, Long, Float, Double

Bit Offset/Count

Set the offset for bit and data count for other data types.

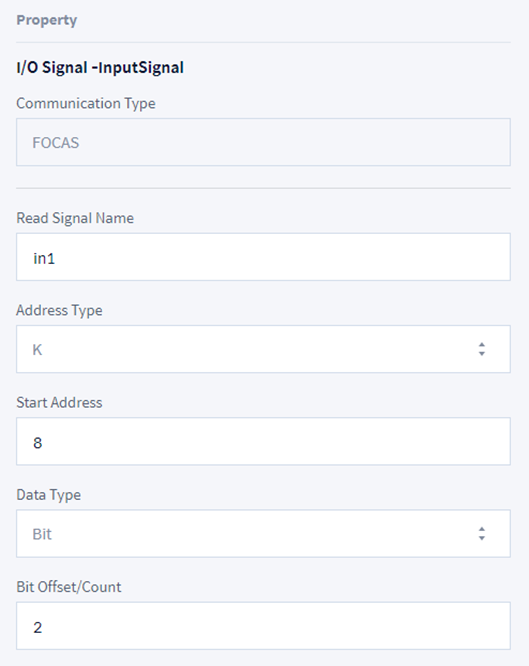

Input Signal

Item

Description

Read Signal Name

Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.

Address Type

Set the address type of FOCAS.

  • Address Type
    - G,F,Y,X,A,R,T,K,C,D,M,N,E,Z

Start Address

Set the start address.

Data Type

Set the data type of FOCAS.

  • Data Type
    - Bit, Char, Word, Long, Float, Double

Bit Offset/Count

Set the offset for bit and data count for other data types.
