Industrial Ethernet

Industrial Ethernet


Item

Description

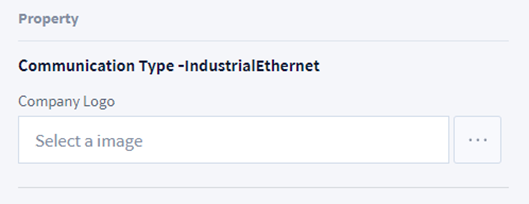

Company Logo

Attach a logo image of the company manufacturing the Worcell Item.

Output/Input Signal

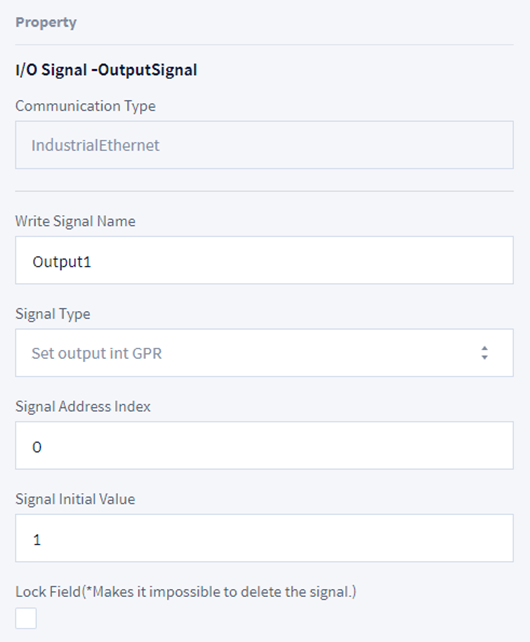

Output Signal


Item

Description

Write Signal Name

Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.

Signal Type

Select the signal type of Industrial Ethernet.

  • Signal Type
    - Get output bit GPR, Get output int GPR, Get output float GPR, Set output bit GPR, Set output int GPR, Set output float GPR

Signal Address Index

Set the address of Industrial Ethernet.

Signal Initial Value

Enter the data to send.

Lock Field

Check the item to set so that it cannot be edited or deleted in the top controller.

Input Signal


Item

Description

Read Signal Name

Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.

Signal Type

Select the signal type of Industrial Ethernet.

  • Signal Type
    - Get input bit GPR, Get input int GPR, Get input float GPR

Signal Address Index

Set the address of Industrial Ethernet.

Lock Field

Check the item to set so that it cannot be edited or deleted in the top controller.
