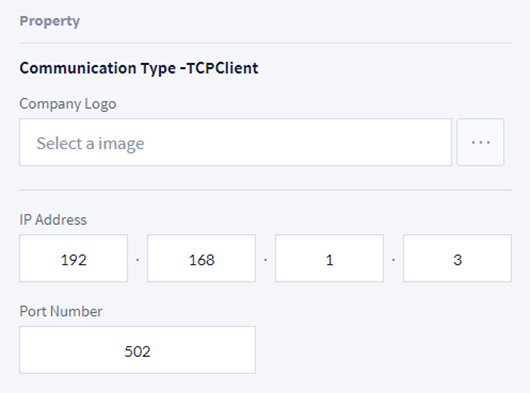

TCP/IP Client
|
Item |
Description |
|---|---|
|
Company Logo |
Attach a logo image of the company manufacturing the Worcell Item. |
|
IP Address |
Set the address of the server to connect. |
|
Port Number |
Enter the Port of the server to connect. |

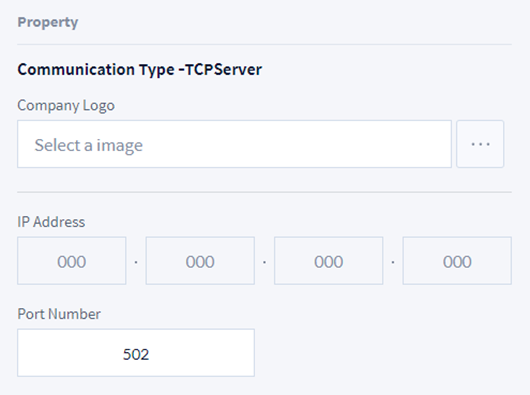

TCP/IP Server
|
Item |
Description |
|---|---|
|
Company Logo |
Attach a logo image of the company manufacturing the Worcell Item. |
|
IP Address |
It is the IP address of the server. IP adress is set as the IP address of the top controller. |
|
Port Number |
Enter the port of the server. |
Output/Input Signal

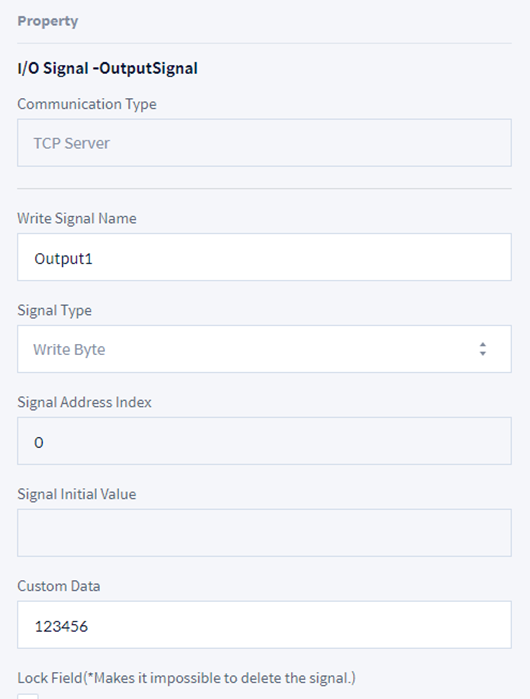

Output Signal
|
Item |
Description |
|---|---|
|
Write Signal Name |
Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters. |
|
Signal Type |
Signal type is Write Byte |
|
Signal Address Index |
This menu is deactivated. |
|
Signal Initial Value |
This menu is deactivated. |
|
Custom Data |
Enter the data to send. |
|
Lock Field |
Check the item to set so that it cannot be edited or deleted in the top controller. |

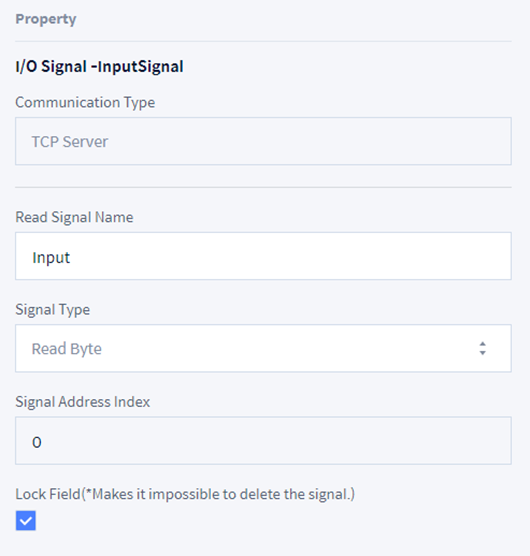

Input Signal
|
Item |
Description |
|---|---|
|
Read Signal Name |
Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters. |
|
Signal Type |
Signal type is Read Byte |
|
Signal Address Index |
This menu is deactivated. |
|
Lock Field |
Check the item to set so that it cannot be edited or deleted in the top controller. |
