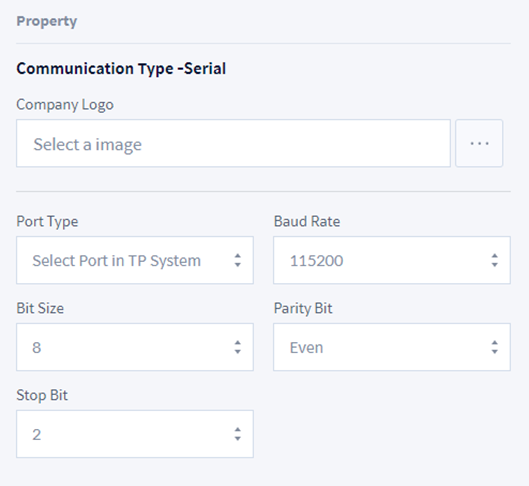

Serial

Company Logo

Attach a logo image of the company manufacturing the Worcell Item.

Port Type

Select the port type of the serial. When “Use Flange Serial Only” is selected, it supports the Flange Serial communication method.

Baud Rate

Set the Baud Rate.

Bit Size

Set the Bit Size.

Parity Bit

Set the Parity Bit.

Stop Bit

Set the Stop Bit.

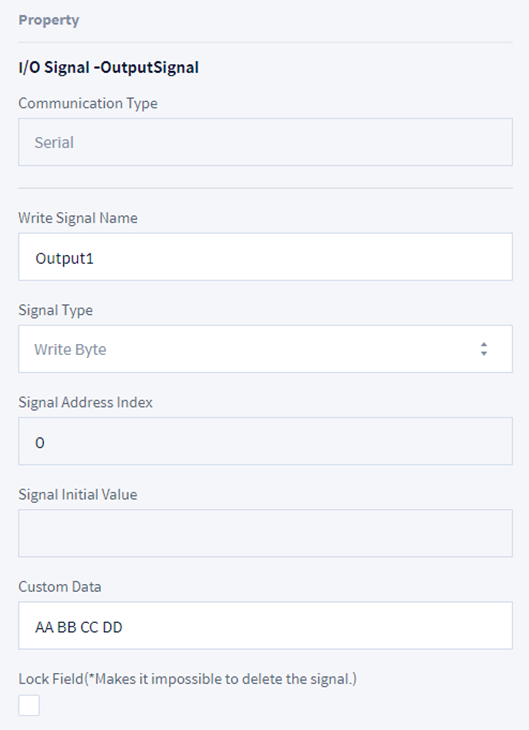

Write Signal Name

Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.

Signal Type

Signal type is Write Byte

Signal Address Index

This menu is deactivated.

Signal Initial Value

This menu is deactivated.

Custom Data

Enter the data to send.

Lock Field

Check the item to set so that it cannot be edited or deleted in the top controller.

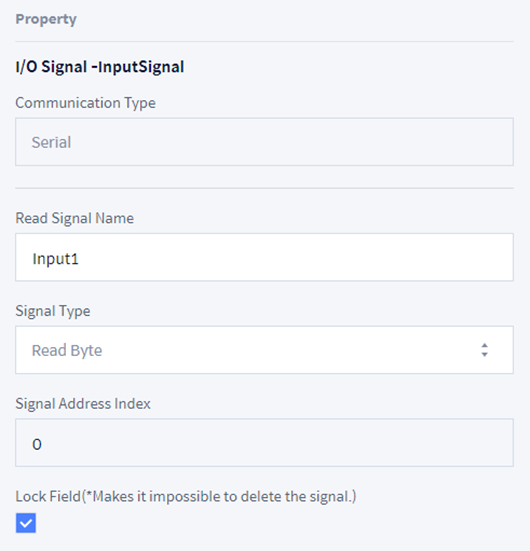

Read Signal Name

Set the name of the signal to add. Only English characters and "_" symbols can be entered, and the maximum length is 20 characters.

Signal Type

Signal type is Read Byte

Signal Address Index

This menu is deactivated.

Lock Field

Check the item to set so that it cannot be edited or deleted in the top controller.
