Modify Input/Output Size of Digital Welding Machine

Sets the EtherNet/IP input/output size of the digital welding machine. This can be verified with the datasheet from the welding machine manufacturer. The example in this manual uses a digital welding machine from EWM.

The input/output size of the EWM is 14 bytes.

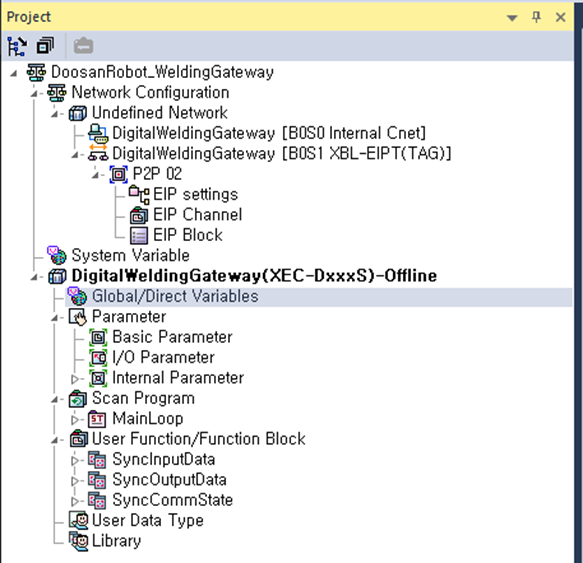

1. (Project Tree) DigitalWeldingGateway → Global/Direct Variables


2. Modifies the 4 items G_MACHINE_IN, G_MACHINE_OUT, G_WELDING_INPUT_SIZE, and G_WELDING_OUTPUT_SIZE among global variables.
   G_MACHINE_IN: Area where the input data from the welding machine is savedG_MACHINE_OUT: Area where the output data to the welding machine is savedG_WELDING_INPUT_SIZE: Size of G_MACHINE_ING_WELDING_OUTPUT_SIZE: Size of G_MACHINE_OUT

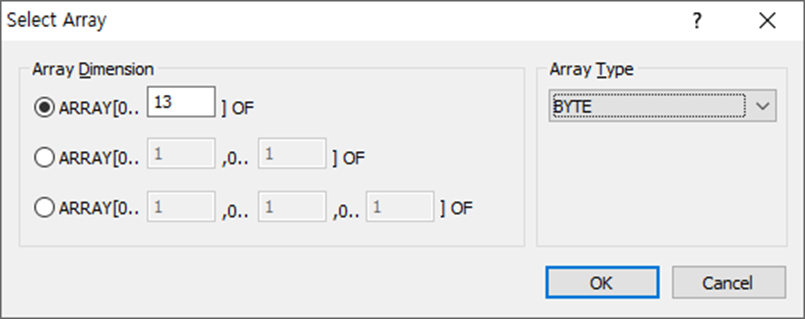

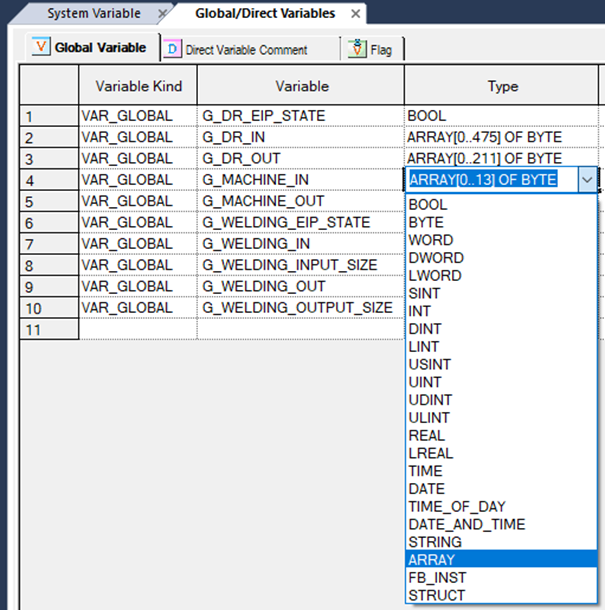

3. G_MACHINE_IN and G_MACHINE_OUT uses ARRAY Data, and the end value of the data in the case of 14 bytes is 13. (Values 0-13, total 14 bytes)















   To prevent initial malfunctions, set the initial value of G_MACHINE_IN / G_MACHINEOUT as 0.

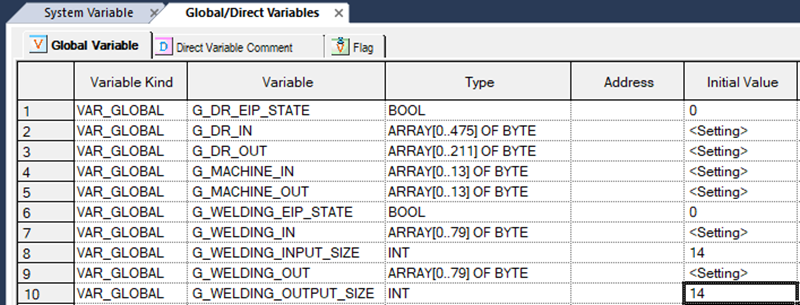

4. Modifies G_WELDING_INPUT_SIZE and G_WELDING_OUTPUT_SIZE.
   The size of G_WELDING_INPUT_SIZE is the size of G_MACHINE_IN, and the size of G_WELDING_OUTPUT_SIZE is the size of G_MACHINE_OUT.




   All data other than G_WELDING_INPUT_SIZE and G_WELDING_OUTPUT_SIZE are reset to 0, and all data of global/direct variables are used with the status retained.




5. Check the EIP/OPC UA item for G_DR_IN, G_DR_OUT, G_MACHINE_IN and G_MACHINE_OUT
