The maximum payload of the robot within its operating space changes according to the distance from the center of gravity. Payload per distance is as follows:
Note
This load diagram assumes a small tool load volume. Tools with a larger volume will have greater limitations in payload above the tool’s center of gravity compared to a tool with an equal weight but smaller volume, and in such cases, vibration may occur.

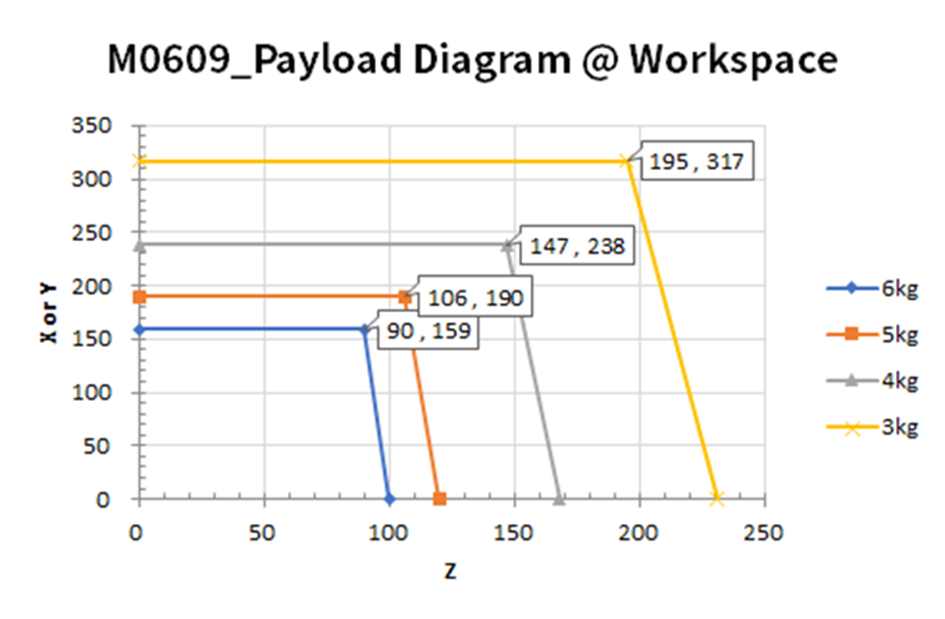

M0609
|

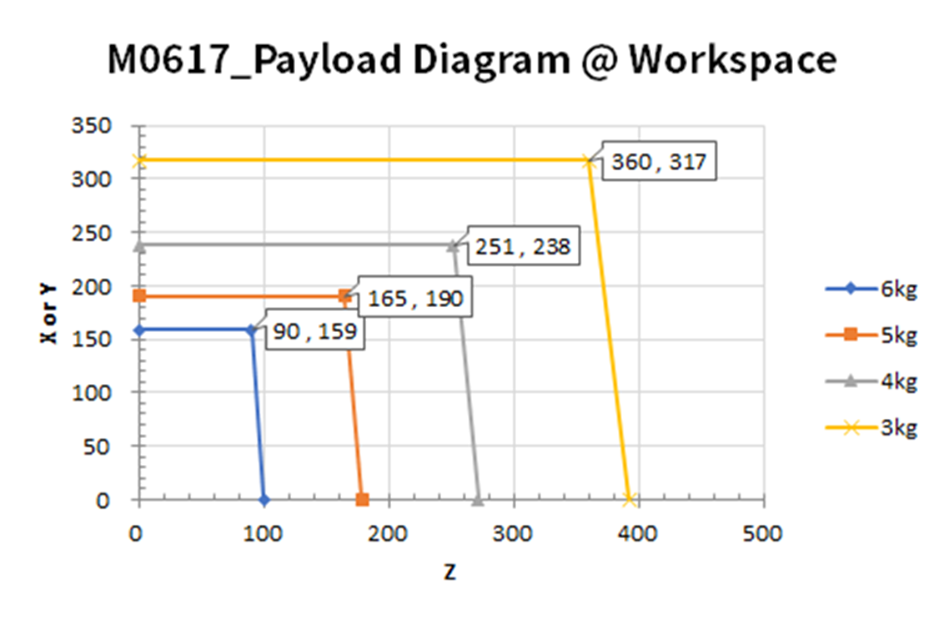

M0609
|

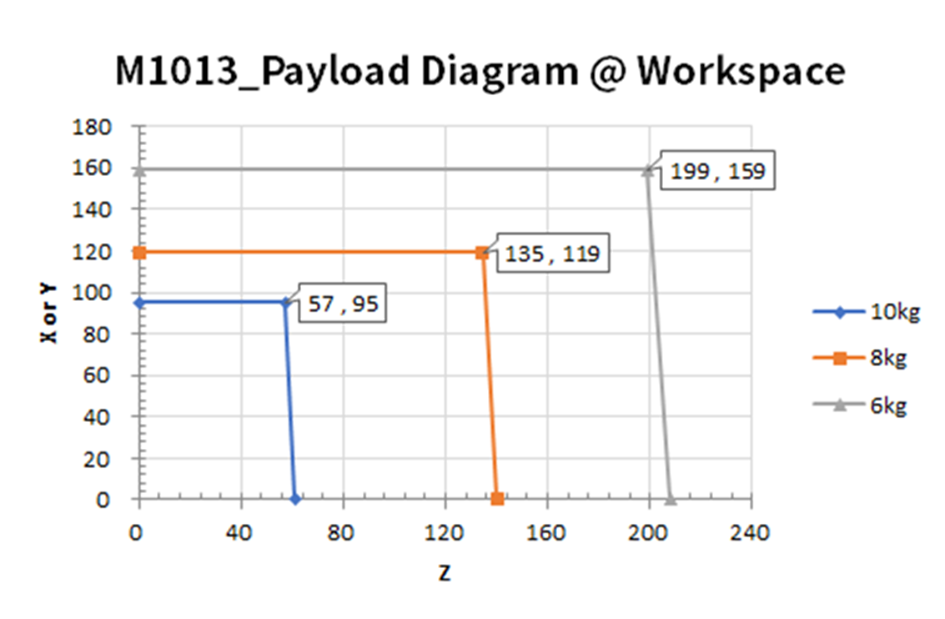

M1013
|

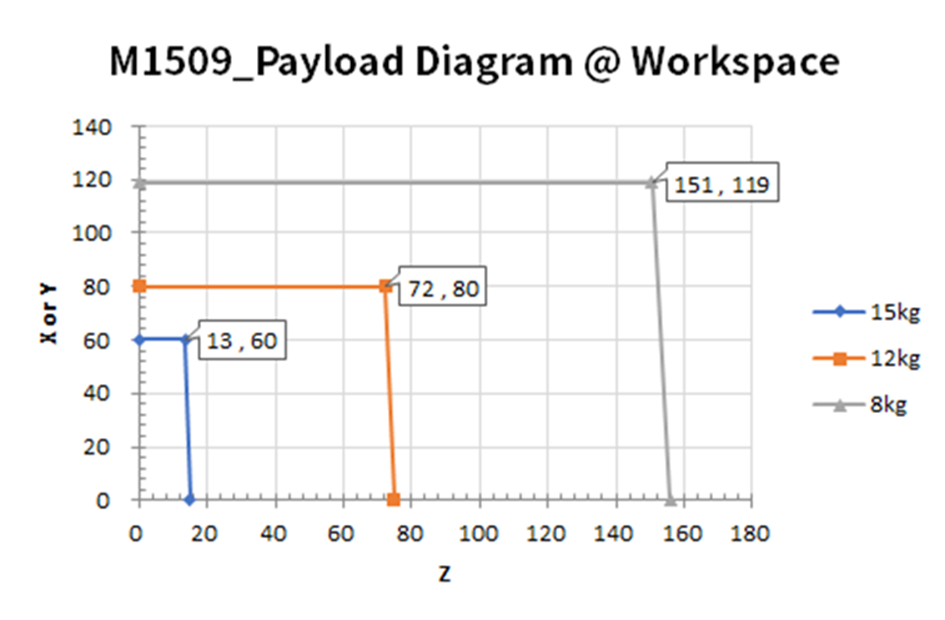

M1509
|

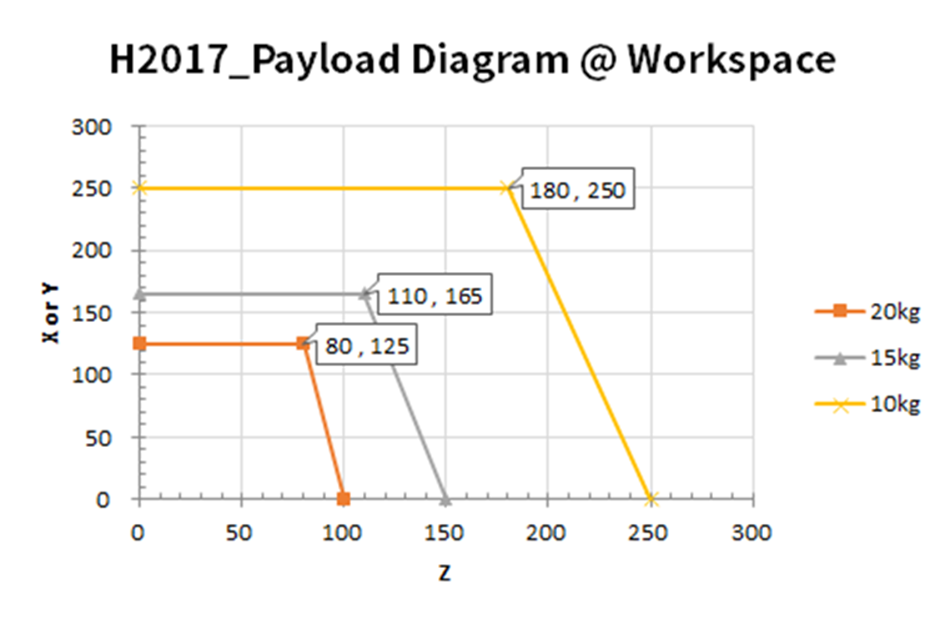

H2017
|

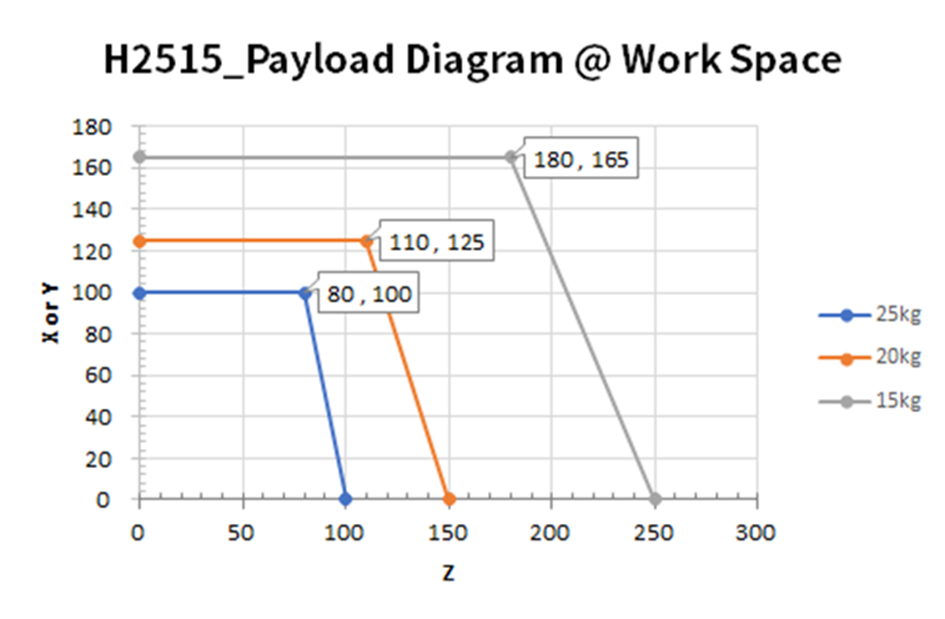

H2515
|
Allowed Moment and Inertia
The allowed moment and inertia for the J4-J6 robot are as follows:
|
Model Name
|
J4 |
J5 |
J6 |
|||
|---|---|---|---|---|---|---|
|
Allowed Moment |
Inertia |
Allowed Moment |
Inertia |
Allowed Moment |
Inertia |
|
|
M0609 |
36 Nm |
1.6 kg㎡ |
36 Nm |
1.6 kg㎡ |
36 Nm |
1.6 kg㎡ |
|
M0617 |
||||||
|
M1013 |
||||||
|
M1509 |
||||||
|
H2017 |
145 Nm
|
8.0 kg㎡
|
81Nm |
4.5 kg㎡
|
36 Nm
|
2.0 kg㎡ |
|
H2515 |
||||||
